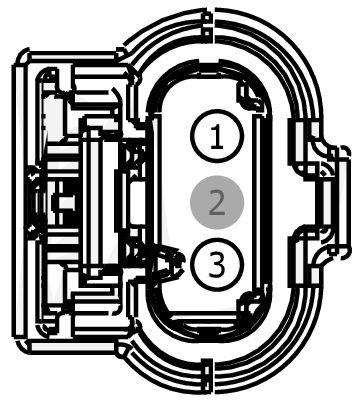

Connector End View (C1602) - IGNITION COIL-ON-PLUG 2

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1602	IGNITION COIL-ON-PLUG 2	BK	12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
EU5T-14474-GAB	KU2Z-14474-CA	1.20

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBK04 (VT)	18	FUSE - 9 OR CIRCUIT BREAKER	EU5T-14474-GAB
2	*	*	Not Used	N/A
3	CE304 (YE-BU)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP-B)	EU5T-14474-GAB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1602

Courtesy of FORD MOTOR COMPANY

Service Part Number:

KU2Z-14S411-BA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Sensor - Delta Pressure Feedback EGR
Sensor - Fuel Rail Pressure

Pigtail Kit Part Number WPT-1558

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-ASA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Coil - Ignition
