Connector End View (C1591) - INLINE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C1591 | INLINE | BK | 14H057/12A58114H057/14405 | Not Available | ||||

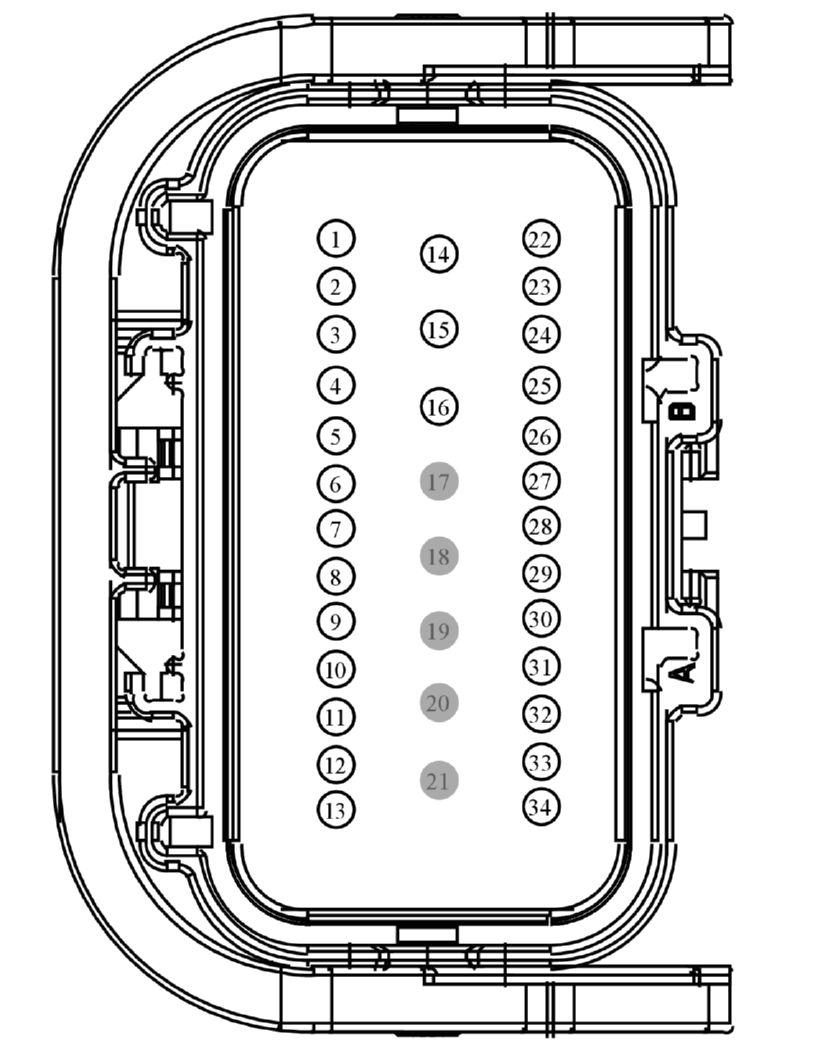

MALE
Harness
14H057/12A581

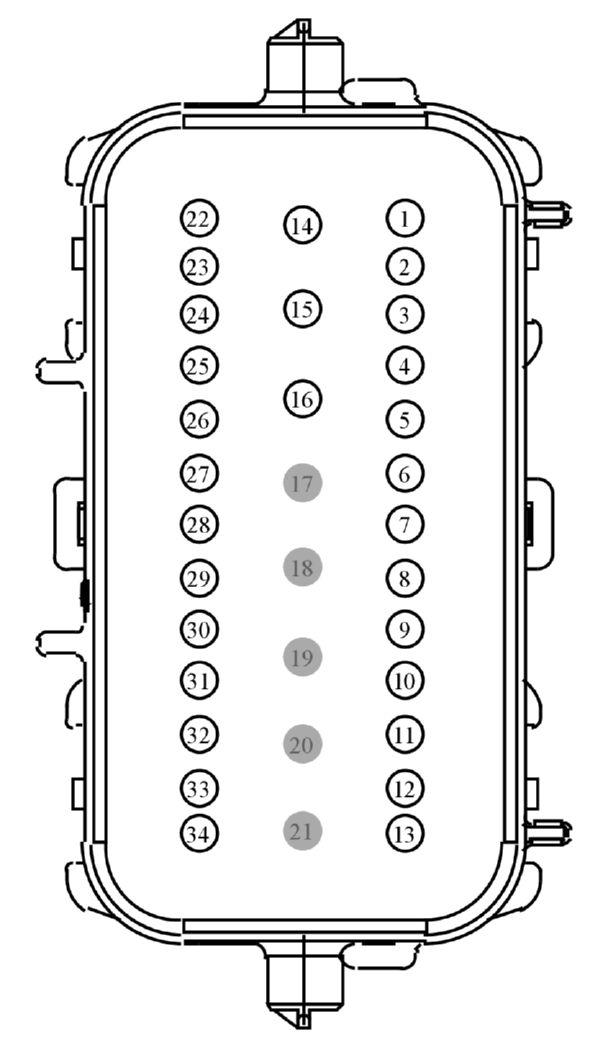

FEMALE
Harness
14H057/14405
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 8U5T-14421-CA | EU2Z-14421-DA | 2.80 |
| 8U5T-14421-BA | EU2Z-14421-DA | 2.80 |
| 8U5T-14421-DA | EU2Z-14421-DA | 2.80 |
| BU5T-14474-UA | DU2Z-14474-DA | 1.50 |
| TE SOCKET | Not Available | |
| EU5T-14474-HA | EU2Z-14474-AB | 2.80 |
| 7C3T-14474-EA | DU2Z-14474-DA | 1.50 |
| TE PIN | Not Available | |
| AU5T-14421-EA | EU2Z-14421-CA | 1.50 |
| CU5T-14474-EB | DU2Z-14474-CA | 0.64 |
| CU5T-14474-DB | DU2Z-14474-CA | 0.64 |
| DU5T-14474-TAB | DU2Z-14474-CA | 0.64 |
| AU5T-14421-FA | EU2Z-14421-CA | 1.50 |
| AU5T-14421-DA | EU2Z-14421-CA | 1.50 |
| EU5T-14474-EA | EU2Z-14474-AB | 2.80 |
| EU5T-14474-FA | EU2Z-14474-AB | 2.80 |
| 9U5T-14421-BA | EU2Z-14421-BA | 0.64 |
| 9U5T-14421-CA | EU2Z-14421-BA | 0.64 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CAT11 (BN) | 14 | 8U5T-14421-CA | |||
| 2 | CBK03 (GY-YE) | 16 | AU5T-14421-EA | |||
| 3 | CBB25 (WH-BU) | 22 | AU5T-14421-DA|AU5T-14421-EA | |||
| 3 | RCD03 (VT-BN) | 18 | AU5T-14421-DA|AU5T-14421-EA | |||
| 4 | CCD03 (WH-BU) | 18 | AU5T-14421-EA | |||
| 5 | VMP52 (BK) | 20 | TE PIN | |||
| 6 | GD909 (BK-WH) | 14 | AU5T-14421-FA | |||
| 7 | CCD04 (GY-YE) | 18 | AU5T-14421-EA | |||
| 8 | RCD04 (BU-OG) | 18 | AU5T-14421-EA | |||
| 9 | CBK01 (BU) | 10 | 8U5T-14421-BA | |||
| 9 | CBK01 (BU-WH) | 10 | 8U5T-14421-BA | |||
| 10 | CCB17 (BU-GN) | 12 | 8U5T-14421-CA | |||
| 11 | CBB25 (WH-OG) | 18 | 9U5T-14421-CA | |||
| 12 | RCD28 (WH-VT) | 22 | 9U5T-14421-BA | |||
| 13 | RE230 (WH-VT) | 22 | 9U5T-14421-BA | |||
| 14 | CYD14 (GN-BN) | 22 | 9U5T-14421-BA | |||
| 15 | VDB04 (BU-GN) | 22 | 9U5T-14421-BA | |||
| 16 | VDB05 (WH-GN) | 22 | 9U5T-14421-BA | |||
| 17 | VDB04 (BU) | 22 | 9U5T-14421-BA | |||
| 18 | VDB05 (WH) | 22 | 9U5T-14421-BA | |||
| 19 | RE230 (WH-VT) | 22 | 9U5T-14421-BA | |||
| 19 | RE823 (GY-YE) | 22 | 9U5T-14421-BA | |||
| 20 | VCD11 (GY-VT) | 22 | 9U5T-14421-BA | |||
| 21 | LCD28 (BN-YE) | 22 | 9U5T-14421-BA | |||
| 22 | SBB37 (GY-RD) | 10 | 8U5T-14421-BA | |||
| 23 | CCB16 (WH-VT) | 12 | 8U5T-14421-CA | |||
| 24 | VCA06 (WH-OG) | 22 | 9U5T-14421-BA | |||
| 25 | RCA20 (BN) | 22 | 9U5T-14421-BA | |||
| 26 | VCA04 (BU-OG) | 22 | 9U5T-14421-BA | |||
| 27 | RCA18 (BN-GN) | 22 | 9U5T-14421-BA | |||
| 28 | CCF31 (YE-BU) | 18 | 9U5T-14421-CA | |||
| 29 | RCF31 (BU-BN) | 18 | 9U5T-14421-CA | |||
| 30 | VE823 (BU-BN) | 22 | 9U5T-14421-BA | |||
| 30 | VE922 (VT-GN) | 22 | 9U5T-14421-BA | |||
| 31 | VE225 (YE-OG) | 22 | 9U5T-14421-BA | |||
| 32 | VE518 (BN-WH) | 22 | 9U5T-14421-BA | |||
| 33 | SBBE6 (YE-RD) | 18 | 9U5T-14421-CA | |||
| 34 | CAT03 (GY-BN) | 18 | 9U5T-14421-CA | |||
| 35 | CBBB4 (VT-BN) | 10 | 8U5T-14421-DA|8U5T-14421-BA | |||
| 35 | CBBB4 (VT-BN) | 16 | 8U5T-14421-DA|8U5T-14421-BA | |||
| 36 | CCB19 (GN-BN) | 12 | 8U5T-14421-CA | |||
| 37 | LE230 (BN-YE) | 22 | 9U5T-14421-BA | |||
| 38 | VE274 (BU-OG) | 18 | 9U5T-14421-CA | |||
| 39 | CYA18 (VT) | 22 | 9U5T-14421-BA | |||
| 40 | CE114 (GN-BU) | 22 | 9U5T-14421-BA | |||
| 40 | VE716 (YE-BU) | 22 | 9U5T-14421-BA | |||
| 41 | CE420 (GY-VT) | 18 | 9U5T-14421-CA | |||
| 42 | VE716 (YE) | 22 | 9U5T-14421-BA | |||
| 43 | CE729 (BN-RD) | 18 | 9U5T-14421-CA | |||
| 44 | RE407 (YE-VT) | 22 | 9U5T-14421-BA | |||
| 44 | VE915 (BN-GN) | 22 | 9U5T-14421-BA | |||
| 45 | CE162 (BU-GN) | 22 | 9U5T-14421-BA | |||
| 45 | VE729 (WH-BU) | 22 | 9U5T-14421-BA | |||
| 46 | CE347 (BU-GN) | 18 | 9U5T-14421-CA|9U5T-14421-BA | |||
| 46 | VE939 (WH-BU) | 22 | 9U5T-14421-CA|9U5T-14421-BA | |||
| 47 | CE196 (WH) | 22 | 9U5T-14421-CA|9U5T-14421-BA | |||
| 47 | CE464 (VT-OG) | 18 | 9U5T-14421-CA|9U5T-14421-BA | |||
| 48 | CBBC1 (BU) | 12 | 8U5T-14421-CA | |||
| 49 | LE230 (BN-BU) | 22 | 9U5T-14421-BA | |||
| 50 | VE783 (VT-BN) | 22 | 9U5T-14421-BA | |||
| 51 | RE259 (BU) | 22 | 9U5T-14421-BA | |||
| 52 | VE940 (GN-BU) | 20 | 9U5T-14421-BA | |||
| 53 | VE941 (BN) | 20 | 9U5T-14421-BA | |||
| 54 | RE230 (WH-VT) | 22 | 9U5T-14421-BA | |||
| 55 | CR167 (YE-GY) | 22 | 9U5T-14421-BA | |||
| 56 | VYB30 (YE-GN) | 22 | 9U5T-14421-BA | |||
| 57 | CE318 (VT-OG) | 22 | 9U5T-14421-BA | |||
| 58 | CETA7 (GY-YE) | 20 | 9U5T-14421-BA|9U5T-14421-CA | |||
| 58 | CYB74 (YE-BU) | 18 | 9U5T-14421-BA|9U5T-14421-CA | |||
| 59 | RCD27 (WH-GN) | 22 | 9U5T-14421-BA | |||
| 60 | CCB18 (YE-GY) | 12 | 8U5T-14421-CA | |||
| 61 | VDB50 (BU-OG) | 22 | AU5T-14421-DA | |||
| 62 | VDB49 (YE-OG) | 22 | AU5T-14421-DA | |||
| 63 | LCD27 (YE-GY) | 22 | AU5T-14421-DA | |||
| 64 | * | * | N/A | |||
| 65 | VDB49 (YE-OG) | 22 | AU5T-14421-DA | |||
| 66 | VDB50 (BU-OG) | 22 | AU5T-14421-DA | |||
| 67 | VCD10 (BN) | 22 | AU5T-14421-DA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CAT11 (BN) | 14 | EU5T-14474-FA | |||
| 2 | CBK03 (GY) | 16 | 7C3T-14474-DA|BU5T-14474-UA | |||
| 2 | CBK03 (GY) | 18 | 7C3T-14474-DA|BU5T-14474-UA | |||
| 2 | CBK03 (GY) | 20 | 7C3T-14474-DA|BU5T-14474-UA | |||
| 3 | CBB25 (WH-BU) | 22 | 7C3T-14474-DA|BU5T-14474-UA | |||
| 3 | RCD03 (VT-BN) | 18 | 7C3T-14474-DA|BU5T-14474-UA | |||
| 4 | CCD03 (WH-BU) | 18 | 7C3T-14474-DA | |||
| 5 | VMP52 (BK) | 20 | TE SOCKET | |||
| 6 | GD909 (BK-WH) | 14 | 7C3T-14474-EA | |||
| 7 | CCD04 (GY-YE) | 18 | 7C3T-14474-DA | |||
| 8 | RCD04 (BU-OG) | 18 | 7C3T-14474-DA | |||
| 9 | CBK01 (BU) | 10 | EU5T-14474-HA | |||
| 10 | CCB17 (BU-GN) | 12 | EU5T-14474-FA | |||
| 11 | CBB25 (WH-OG) | 20 | CU5T-14474-EB | |||
| 12 | RCD28 (WH-VT) | 22 | DU5T-14474-TAB | |||
| 13 | RE230 (WH-VT) | 20 | CU5T-14474-EB | |||
| 14 | CYD14 (GN-BN) | 22 | DU5T-14474-TAB | |||
| 15 | VDB04 (BU-GN) | 22 | DU5T-14474-TAB | |||
| 16 | VDB05 (WH-GN) | 22 | DU5T-14474-TAB | |||
| 17 | VDB04 (BU) | 22 | DU5T-14474-TAB | |||
| 18 | VDB05 (WH) | 22 | DU5T-14474-TAB | |||
| 19 | RE230 (WH-VT) | 22 | DU5T-14474-TAB|CU5T-14474-DB | |||
| 19 | RE823 (GY-YE) | 18 | DU5T-14474-TAB|CU5T-14474-DB | |||
| 20 | VCD11 (GY-VT) | 22 | DU5T-14474-TAB | |||
| 21 | LCD28 (BN-YE) | 22 | DU5T-14474-TAB | |||
| 22 | SBB37 (GY-RD) | 10 | EU5T-14474-HA | |||
| 23 | CCB16 (WH-VT) | 10 | EU5T-14474-HA | |||
| 24 | VCA06 (WH-OG) | 20 | CU5T-14474-EB | |||
| 25 | RCA20 (BN) | 20 | CU5T-14474-EB | |||
| 26 | VCA04 (BU-OG) | 20 | CU5T-14474-EB | |||
| 27 | RCA18 (BN-GN) | 20 | CU5T-14474-EB | |||
| 28 | CCF31 (YE-BU) | 18 | CU5T-14474-DB | |||
| 29 | RCF31 (BU-BN) | 18 | CU5T-14474-DB | |||
| 30 | VE823 (BU-BN) | 18 | DU5T-14474-TAB|CU5T-14474-DB | |||
| 30 | VE922 (VT-GN) | 22 | DU5T-14474-TAB|CU5T-14474-DB | |||
| 31 | VE225 (YE-OG) | 22 | DU5T-14474-TAB | |||
| 32 | VE518 (BN-WH) | 22 | DU5T-14474-TAB | |||
| 33 | SBBE6 (YE-RD) | 20 | CU5T-14474-EB | |||
| 34 | CAT03 (GY-BN) | 18 | CU5T-14474-DB | |||
| 35 | CBBB4 (VT-BN) | 14 | EU5T-14474-FA|EU5T-14474-EA | |||
| 35 | CBBB4 (VT-BN) | 16 | EU5T-14474-FA|EU5T-14474-EA | |||
| 36 | CCB19 (GN-BN) | 10 | EU5T-14474-HA | |||
| 37 | LE230 (BN-YE) | 22 | DU5T-14474-TAB | |||
| 38 | CE420 (GY-VT) | 20 | CU5T-14474-EB | |||
| 38 | VE274 (BU-OG) | 20 | CU5T-14474-EB | |||
| 39 | CYA18 (VT) | 22 | DU5T-14474-TAB | |||
| 40 | CE114 (GN-BU) | 20 | DU5T-14474-TAB|CU5T-14474-EB | |||
| 40 | VE716 (YE-BU) | 22 | DU5T-14474-TAB|CU5T-14474-EB | |||
| 41 | CE420 (GY-VT) | 20 | CU5T-14474-EB | |||
| 42 | VE716 (YE) | 20 | CU5T-14474-EB | |||
| 43 | CE729 (BN-RD) | 20 | CU5T-14474-EB | |||
| 44 | RE407 (YE-VT) | 22 | DU5T-14474-TAB | |||
| 44 | VE915 (BN-GN) | 22 | DU5T-14474-TAB | |||
| 45 | CE162 (BU-GN) | 22 | DU5T-14474-TAB | |||
| 45 | VE729 (WH-BU) | 22 | DU5T-14474-TAB | |||
| 46 | CE347 (BU-GN) | 18 | CU5T-14474-DB|DU5T-14474-TAB | |||
| 46 | VE939 (WH-BU) | 22 | CU5T-14474-DB|DU5T-14474-TAB | |||
| 47 | CE196 (WH) | 22 | CU5T-14474-DB|DU5T-14474-TAB | |||
| 47 | CE464 (VT-OG) | 18 | CU5T-14474-DB|DU5T-14474-TAB | |||
| 48 | CBBC1 (BU) | 12 | EU5T-14474-FA | |||
| 49 | LE230 (BN-BU) | 22 | DU5T-14474-TAB | |||
| 50 | VE783 (VT-BN) | 22 | DU5T-14474-TAB | |||
| 51 | RE259 (BU) | 22 | DU5T-14474-TAB | |||
| 52 | VE940 (GN-BU) | 20 | CU5T-14474-EB | |||
| 53 | VE941 (BN) | 20 | CU5T-14474-EB | |||
| 54 | RE230 (WH-VT) | 22 | DU5T-14474-TAB | |||
| 55 | CR167 (YE-GY) | 22 | DU5T-14474-TAB | |||
| 56 | VYB30 (YE-GN) | 22 | DU5T-14474-TAB | |||
| 57 | CE318 (VT-OG) | 22 | DU5T-14474-TAB | |||
| 58 | CETA7 (GY-YE) | 20 | CU5T-14474-DB|CU5T-14474-EB | |||
| 58 | CYB74 (YE-BU) | 18 | CU5T-14474-DB|CU5T-14474-EB | |||
| 59 | RCD27 (WH-GN) | 22 | DU5T-14474-TAB | |||
| 60 | CCB18 (YE-GY) | 10 | EU5T-14474-HA | |||
| 61 | VDB50 (BU-OG) | 22 | BU5T-14474-UA | |||
| 62 | VDB49 (YE-OG) | 22 | BU5T-14474-UA | |||
| 63 | LCD27 (YE-GY) | 22 | BU5T-14474-UA | |||
| 64 | * | * | N/A | |||
| 65 | VDB49 (YE-OG) | 22 | BU5T-14474-UA | |||
| 66 | VDB50 (BU-OG) | 22 | BU5T-14474-UA | |||
| 67 | VCD10 (BN) | 22 | BU5T-14474-UA | |||
