Connector End View (C1586) - INLINE

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C1586	INLINE	LT GY	12C50812A581	See Below

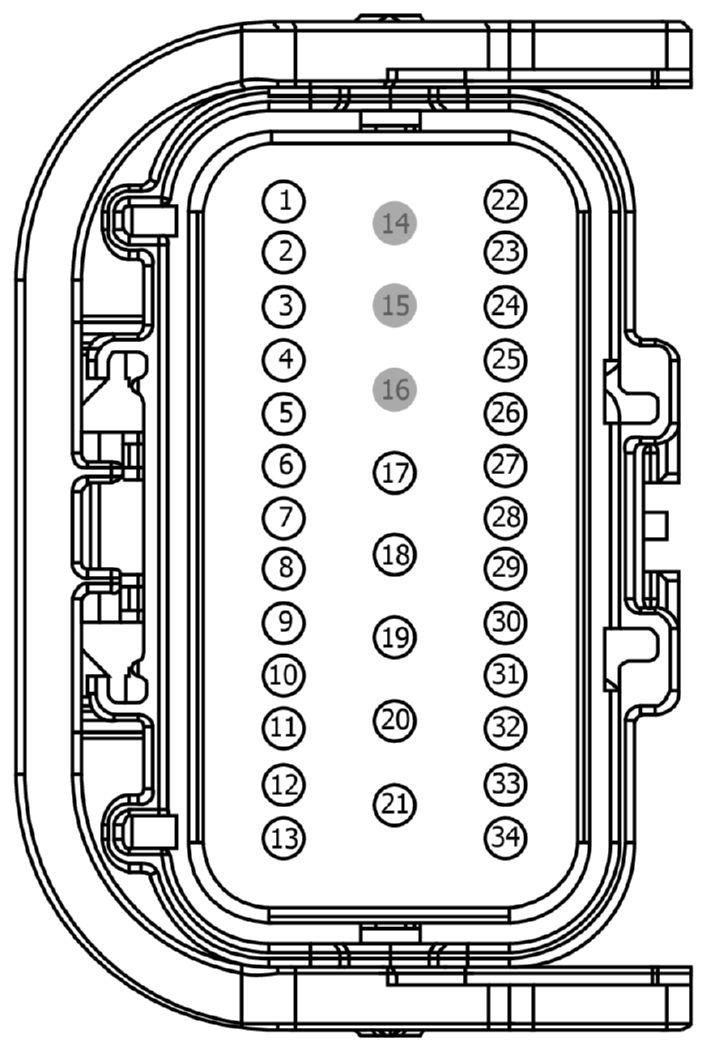

MALE

Harness

12C508

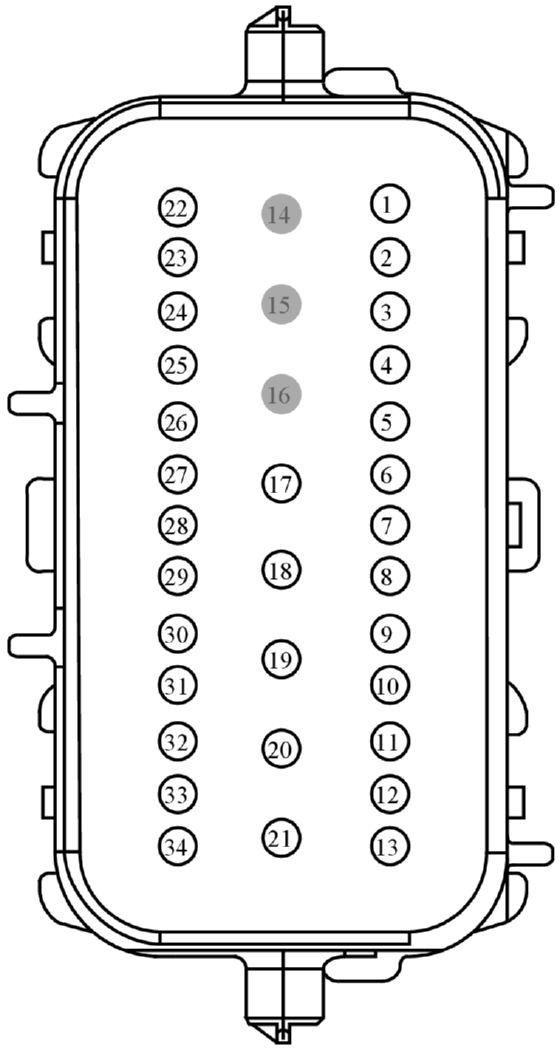

FEMALE

Harness

12A581

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
2L1T-14421-CA	EU2Z-14421-CA	1.50
BU5T-14421-HA	EU2Z-14421-CA	1.50
BU5T-14474-UA	DU2Z-14474-DA	1.50
1F1T-14421-FA	EU2Z-14421-FA	2.80
1F1T-14421-GA	EU2Z-14421-FA	2.80
1F1T-14474-GA	DU2Z-14474-FA	2.80
1F1T-14474-JA	DU2Z-14474-FA	2.80
1F1T-14474-EA	DU2Z-14474-FA	2.80

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBK05 (YE)	18	1F1T-14421-GA
2	CBK03 (GY)	18	2L1T-14421-CA
3	*	*	N/A
4	*	*	N/A
5	GD113 (BK-YE)	18	2L1T-14421-CA
6	LE425 (BU-BN)	18	2L1T-14421-CA
7	VEC03 (WH-BU)	20	BU5T-14421-HA
8	VEC10 (GY-YE)	20	1F1T-14421-FA
9	*	*	N/A
10	*	*	N/A
11	*	*	N/A
12	CH305 (BU-BN)	20	BU5T-14421-HA
13	*	*	N/A
14	*	*	N/A
15	*	*	N/A

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBK05 (YE)	16	1F1T-14474-GA
2	CBK03 (GY)	16	7C3T-14474-DA
3	*	*	N/A
4	*	*	N/A
5	RE479 (VT-BN)	22	BU5T-14474-UA
6	LE111 (VT-GN)	22	BU5T-14474-UA
7	VE203 (YE-GY)	22	BU5T-14474-UA
8	VEC10 (GY-YE)	22	1F1T-14474-EA
9	*	*	N/A
10	*	*	N/A
11	*	*	N/A
12	CETA7 (GY-YE)	20	BU5T-14474-UA
13	*	*	N/A
14	*	*	N/A
15	*	*	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1092

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-AKA

Gauge:

12 16

Pin material:

Tin & Silver

Cavities:

Vehicle Uses:

Connector - Inline

Pigtail Kit Part Number WPT-1660

Service Part Number:

LU2Z-14S411-AHA

Gauge:

14 16

Pin material:

Tin & Silver

Cavities:

Vehicle Uses:

Connector - Inline
