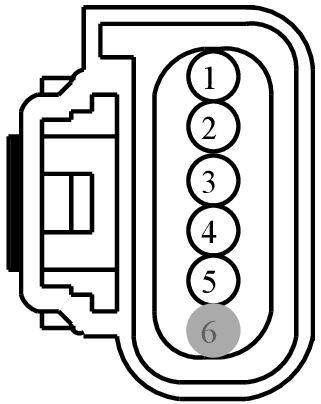

Connector End View (C1521) - CYLINDER HEAD TEMPERATURE (CHT) SENSOR

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1521	CYLINDER HEAD TEMPERATURE (CHT) SENSOR	BK	12A378	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
EU5T-14474-GAB	KU2Z-14474-CA	1.20

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE712 (BU-GY)	18	SENSOR - CYLINDER HEAD TEMPERATURE (CHT)	EU5T-14474-GAB
2	RE406 (GY-VT)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (SIGRTN)	EU5T-14474-GAB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1469

Courtesy of FORD MOTOR COMPANY

Service Part Number:

GU2Z-14S411-KA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Sensor - Side Impact
Sensor - Transfer Case Temperature
Sensor - Transmission Fluid Temperature
Solenoid - Variable Oil Pump Control
