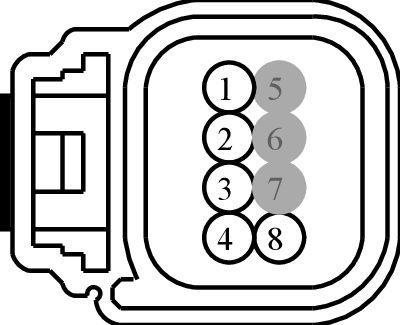

Connector End View (C1484) - FRONT SIDE OBSTACLE DETECTION CONTROL MODULE RH (SODCMD)
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1484 | FRONT SIDE OBSTACLE DETECTION CONTROL MODULE RH (SODCMD) | BK | 14B446/12A581 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 3F2T-14474-SA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CMF13 (YE-OG) | 22 | CTRL MOD. - LEFT FRONT RADAR POWER | 3F2T-14474-SA | ||||
| 1 | CMF15 (GN-BU) | 22 | CTRL MOD. - RIGHT FRONT RADAR POWER | 3F2T-14474-SA | ||||
| 2 | VMF11 (WH-OG) | 22 | CTRL MOD. - FRONT RADAR # CAN BUS LOW | 3F2T-14474-SA | ||||
| 3 | VMF10 (WH-VT) | 22 | CTRL MOD. - FRONT RADAR # CAN BUS HIGH | 3F2T-14474-SA | ||||
| 4 | RMF13 (BN) | 22 | CTRL MOD. - LEFT FRONT RADAR GROUND | 3F2T-14474-SA | ||||
| 4 | RMF15 (GN) | 22 | CTRL MOD. - RIGHT FRONT RADAR GROUND | 3F2T-14474-SA | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | * | * | Not Used | N/A | ||||
| 7 | * | * | Not Used | N/A | ||||
| 8 | RMF13 (BN) | 22 | CTRL MOD. - LEFT FRONT RADAR GROUND | 3F2T-14474-SA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1198
Service Part Number:
4U2Z-14S411-LC
Gauge:
18
Pin material:
Silver
Cavities:
8
Vehicle Uses:
- Module - Remote Keyless Entry
- Switch - Keyless Entry
