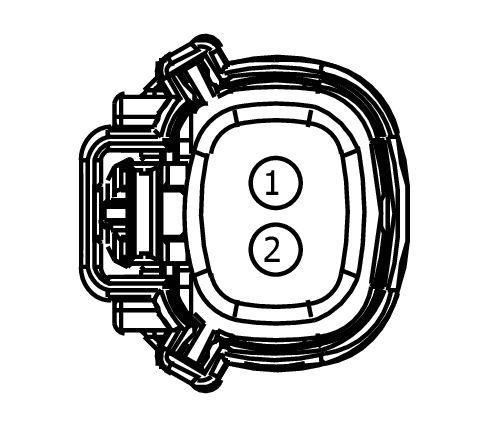

Connector End View (C1465) - DRIVER FRONT IMPACT SEVERITY SENSOR

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1465	DRIVER FRONT IMPACT SEVERITY SENSOR	BK	12A581	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
EU5T-14474-DAB	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VR213 (VT-GN)	20	SENSOR - IMPACT FRONT 1ST	EU5T-14474-DAB
2	RR129 (YE-GY)	20	CTRL MOD. - SENSOR IMPACT FRONT 1ST -	EU5T-14474-DAB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1469

Courtesy of FORD MOTOR COMPANY

Service Part Number:

GU2Z-14S411-KA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Sensor - Side Impact
Sensor - Transfer Case Temperature
Sensor - Transmission Fluid Temperature
Solenoid - Variable Oil Pump Control
