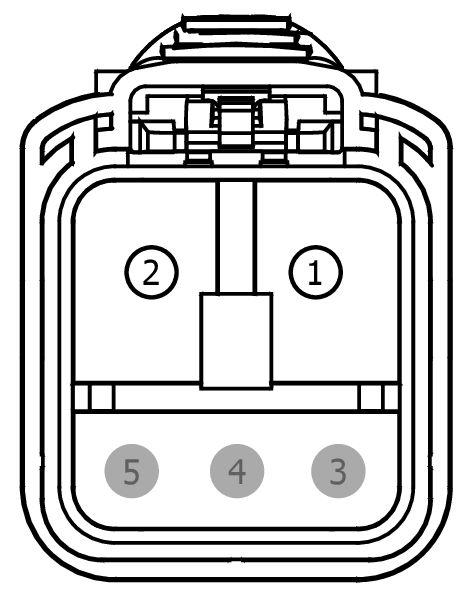

Connector End View (C1463A) - POWER STEERING CONTROL MODULE (PSCM)
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1463A |
POWER STEERING CONTROL MODULE (PSCM) |
BK |
3C221 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| JU5T-14474-AEB |
Not Available |
| 97BG-14474-ADA |
LU2Z-14474-CA |
1.50 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
SB204 (GN-RD) |
8 |
FUSE - 204 OR CIRCUIT BREAKER |
JU5T-14474-AEB |
| 2 |
GD420 (BK-BU) |
8 |
GROUND |
JU5T-14474-AEB |
| 3 |
CBB22 (GN-OG) |
20 |
FUSE - 22 OR CIRCUIT BREAKER |
97BG-14474-ADA |
| 4 |
VDB49 (YE-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED FD HIGH |
97BG-14474-ADA |
| 5 |
VDB50 (BU-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED FD LOW |
97BG-14474-ADA |
