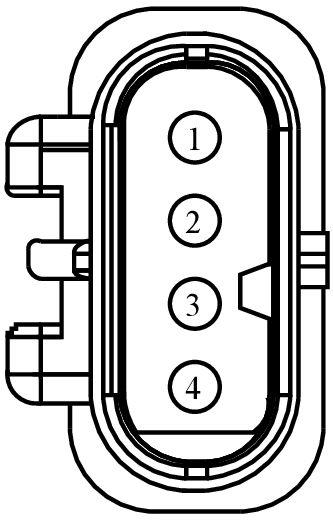

Connector End View (C1457B) - DIRECT CURRENT/DIRECT CURRENT (DC/DC) CONVERTER CONTROL MODULE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1457B |
DIRECT CURRENT/DIRECT CURRENT (DC/DC) CONVERTER CONTROL MODULE |
BK |
3C221 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| 6R8T-14474-CA |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
SBBF9 (WH-RD) |
20 |
FUSE - 159 OR CIRCUIT BREAKER |
6R8T-14474-CA |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
VDB04 (BU) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
6R8T-14474-CA |
| 4 |
VDB05 (WH) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
6R8T-14474-CA |
| 5 |
CYD14 (GN-BN) |
20 |
CTRL MOD. - DC/DC CONVERTER # DC/DC WAKEUP (DCDC_WKUP) |
6R8T-14474-CA |
| 6 |
* |
* |
Not Used |
N/A |
