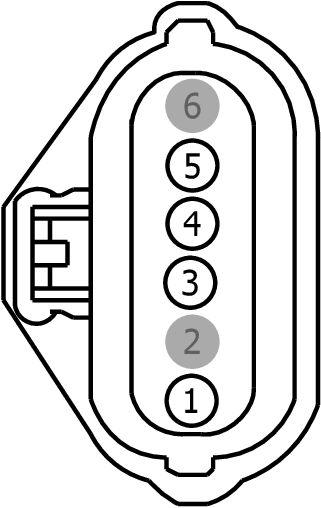

Connector End View (C1457A) - DIRECT CURRENT/DIRECT CURRENT (DC/DC) CONVERTER CONTROL MODULE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1457A |
DIRECT CURRENT/DIRECT CURRENT (DC/DC) CONVERTER CONTROL MODULE |
OG |
14B322 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| LU5T-14474-CA |
Not Available |
| LU5T-14474-BA |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
HYD16 (OG-WH) |
10 |
CTRL MOD. - HYBRID AIR CONDITIONING # HIGH VOLTAGE NEG (HV-) |
LU5T-14474-CA |
| 2 |
HYT01 (OG) |
10 |
CTRL MOD. - HYBRID TRANSAXLE # DC/DC POS (+) |
LU5T-14474-BA |
| 3 |
HYT02 (OG-BK) |
10 |
CTRL MOD. - HYBRID TRANSAXLE # DC/DC NEG (-) |
LU5T-14474-BA |
| 4 |
HYD15 (OG-RD) |
10 |
CTRL MOD. - HYBRID AIR CONDITIONING # HIGH VOLTAGE POS (HV+) |
LU5T-14474-CA |
