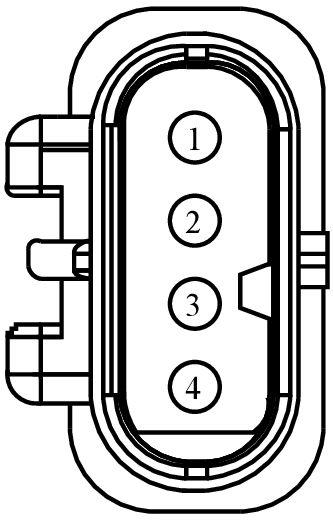

Connector End View (C1448) - EXHAUST GAS RECIRCULATION TEMPERATURE BANK 1, SENSOR 2 (EGRT12)
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1448 |
EXHAUST GAS RECIRCULATION TEMPERATURE BANK 1, SENSOR 2 (EGRT12) |
BK |
12C508 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| 7C3T-14474-UA |
LU2Z-14474-CA |
1.50 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
VE765 (GY-BU) |
20 |
SENSOR - EXHAUST GAS RECIRCULATION COOLER OUTLET TEMPERATURE + |
7C3T-14474-UA |
| 2 |
RE405 (GN-WH) |
20 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) |
7C3T-14474-UA |
