Connector End View (C1415) - INLINE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C1415 | INLINE | BK | 12C50812A378 | Not Available | ||||

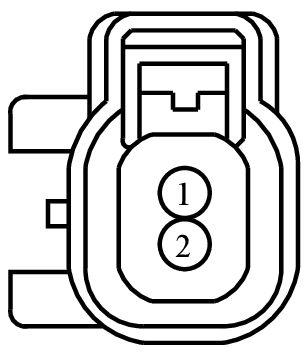

MALE
Harness
12C508
FEMALE
Harness
12A378
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 1F1T-14421-JA | EU2Z-14421-FA | 2.80 |
| 1F1T-14474-JA | DU2Z-14474-FA | 2.80 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CE243 (GY-VT) | 12 | 1F1T-14421-JA | |||
| 2 | CE244 (BU-BN) | 12 | 1F1T-14421-JA | |||
| 3 | CE245 (VT-WH) | 12 | 1F1T-14421-JA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CE243 (GY-VT) | 14 | 1F1T-14474-JA | |||
| 2 | CE244 (BU-BN) | 14 | 1F1T-14474-JA | |||
| 3 | CE245 (VT-WH) | 14 | 1F1T-14474-JA | |||
