Connector End View (C1413) - INLINE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C1413 | INLINE | DK GY | 12C50812A378 | See Below | ||||

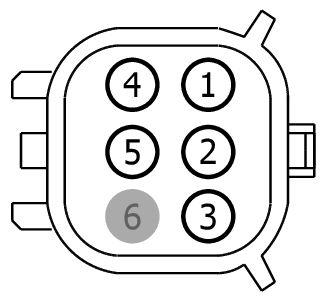

MALE
Harness
12C508

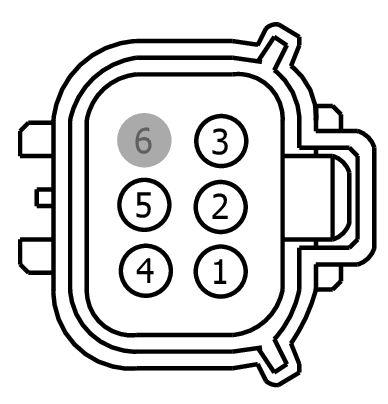

FEMALE
Harness
12A378
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 1F1T-14421-JA | EU2Z-14421-FA | 2.80 |
| 1F1T-14474-JA | DU2Z-14474-FA | 2.80 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CE246 (YE-BU) | 12 | 1F1T-14421-JA | |||
| 2 | CE247 (GN-WH) | 12 | 1F1T-14421-JA | |||
| 3 | CE248 (WH-BN) | 12 | 1F1T-14421-JA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CE246 (YE-BU) | 14 | 1F1T-14474-JA | |||
| 2 | CE247 (GN-WH) | 14 | 1F1T-14474-JA | |||
| 3 | CE248 (WH-BN) | 14 | 1F1T-14474-JA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1012
Service Part Number:
9U2Z-14S411-PA
Gauge:
14
Pin material:
Tin
Cavities:
4
Vehicle Uses:
- Motor - Windshield Wiper
- Radio - Amplifier
