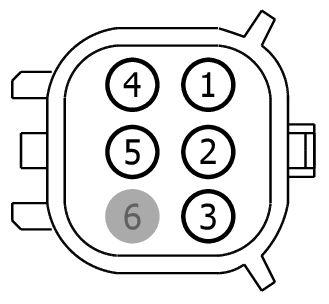

Connector End View (C1389) - ELECTRIC EXHAUST GAS RECIRCULATION (EEGR) ASSEMBLY
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1389 | ELECTRIC EXHAUST GAS RECIRCULATION (EEGR) ASSEMBLY | BK | 12C508 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| EU5T-14474-FAB | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | LE139 (BN-WH) | 20 | CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. VALVE + | EU5T-14474-FAB | ||||
| 2 | RE139 (GY-OG) | 20 | CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. VALVE - | EU5T-14474-FAB | ||||
| 3 | LE180 (YE-BU) | 20 | CTRL MOD. - POWERTRAIN # EXHAUST GAS VALVE POSITION SENSOR + | EU5T-14474-FAB | ||||
| 4 | RE180 (GY-BU) | 20 | CTRL MOD. - POWERTRAIN # EXHAUST GAS VALVE POSITION SENSOR - | EU5T-14474-FAB | ||||
| 5 | CE508 (VT-BN) | 20 | CTRL MOD. - EXHAUST GAS RECIRCULATION | EU5T-14474-FAB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1504
Service Part Number:
HU2Z-14S411-LA
Gauge:
18
Pin material:
Silver
Cavities:
5
Vehicle Uses:
- Actuator - Turbocharger Waste Gate
- Module - NOX Sensor
- Solenoid - EGR Cooler Bypass
- Valve - EGR
