Connector End View (C1381T) - POWERTRAIN CONTROL MODULE (PCM)

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: Description Color Harness Base Part # Service Pigtail

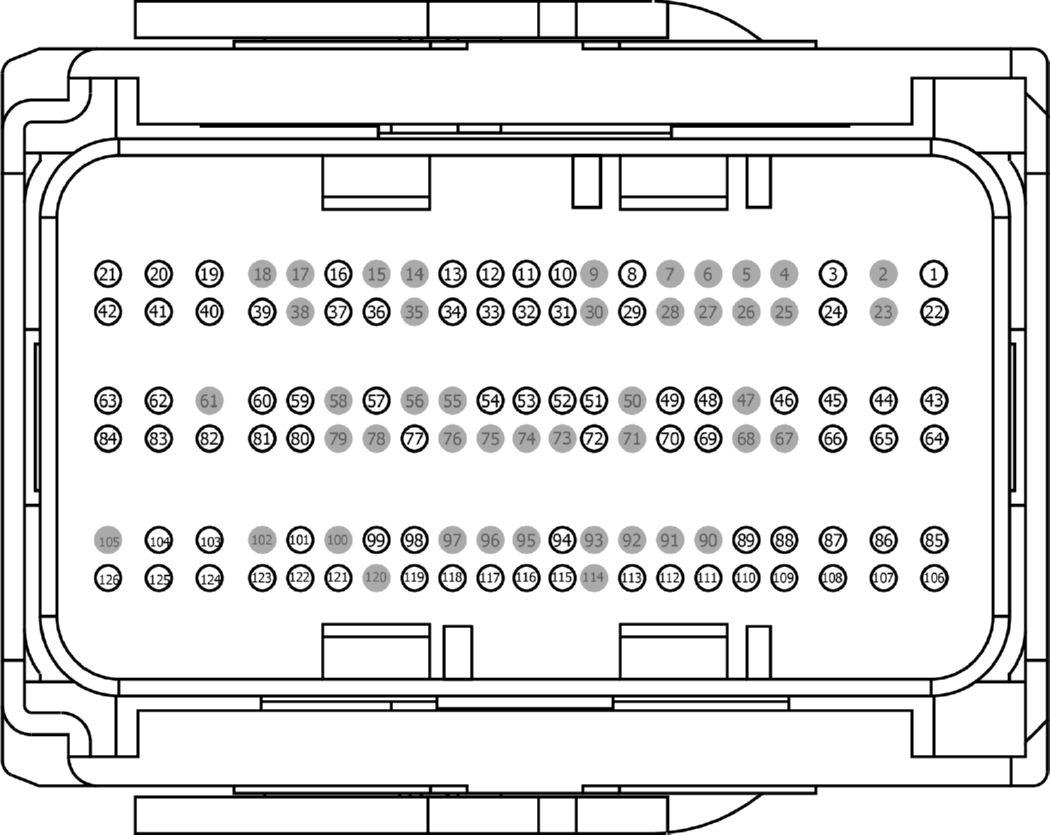

C1381T POWERTRAIN CONTROL MODULE (PCM) BK 15525 part# N/A Not Available
GFDWR124186Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
GU5T-14474-CA DU2Z-14474-BA 0.64
BU5T-14474-AB DU2Z-14474-CA 0.64
BU5T-14474-BB DU2Z-14474-CA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CET49 (BN) 18 CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL 2 (TSPC2) GU5T-14474-CA
2 CET25 (BU-GN) 18 CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC) GU5T-14474-CA
3 * * Not Used N/A
4 CET09 (YE-VT) 20 CTRL MOD. - POWERTRAIN # SHIFT SOLENOID E (SSE) BU5T-14474-AB
5 CET06 (GN-BU) 20 CTRL MOD. - POWERTRAIN # SHIFT SOLENOID B (SSB) BU5T-14474-AB
6 CET85 (GY-OG) 20 CTRL MOD. - POWERTRAIN # AUTOMATIC TRANSMISSION FLUID PUMP CONTROL BU5T-14474-AB
7 * * Not Used N/A
8 VE474 (BU-GN) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION CAN BUS HIGH SPEED HIGH BU5T-14474-AB
9 * * Not Used N/A
10 * * Not Used N/A
11 RE733 (GN) 18 SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22) BU5T-14474-BB
12 RE731 (WH-BU) 18 SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (LSF_GND) BU5T-14474-BB
13 * * Not Used N/A
14 * * Not Used N/A
15 * * Not Used N/A
16 * * Not Used N/A
17 * * Not Used N/A
18 CET07 (GY-OG) 20 CTRL MOD. - POWERTRAIN # SHIFT SOLENOID C (SSC) BU5T-14474-AB
19 * * Not Used N/A
20 CET50 (WH-OG) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION LINE PRESSURE CONTROL (LPC) BU5T-14474-AB
21 * * Not Used N/A
22 * * Not Used N/A
23 VE475 (WH-VT) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION CAN BUS HIGH SPEED LOW BU5T-14474-AB
24 * * Not Used N/A
25 * * Not Used N/A
26 VE733 (WH) 18 SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22) BU5T-14474-BB
27 VE731 (YE-GN) 18 SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) BU5T-14474-BB
28 * * Not Used N/A
29 * * Not Used N/A
30 * * Not Used N/A
31 * * Not Used N/A
32 CET91 (YE-OG) 18 CTRL MOD. - POWERTRAIN # TRANSMISSION ACTUATOR SUPPLY VOLTAGE GU5T-14474-CA
33 CET51 (WH) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION CLUTCH PRESSURE CONTROL (CPC) BU5T-14474-AB
34 CET10 (BU-GY) 20 CTRL MOD. - POWERTRAIN # SHIFT SOLENOID F (SSF) BU5T-14474-AB
35 CET05 (BU-GN) 20 CTRL MOD. - POWERTRAIN # SHIFT SOLENOID A (SSA) BU5T-14474-AB
36 * * Not Used N/A
37 * * Not Used N/A
38 * * Not Used N/A
39 * * Not Used N/A
40 VET27 (BN-YE) 20 SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) BU5T-14474-AB
41 * * Not Used N/A
42 VE827 (WH-GN) 18 SENSOR - UNIVERSAL HEATED OXYGEN 2ND (UO2SN-21) BU5T-14474-BB
43 LE449 (VT-GN) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 2ND (UREF-21) BU5T-14474-BB
44 LE448 (GY-BU) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UREF-11) BU5T-14474-BB
45 VE826 (YE-GN) 18 SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2SN-11) BU5T-14474-BB
46 CE236 (GY-VT) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 2ND (HTR21) GU5T-14474-CA
47 CE235 (GN-BN) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (HTR11) GU5T-14474-CA
48 CET08 (BK-WH) 20 CTRL MOD. - POWERTRAIN # SHIFT SOLENOID D (SSD) BU5T-14474-AB
49 LE425 (BU-BN) 20 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE TRANSMISSION (VREF) BU5T-14474-AB
50 LE461 (GY-YE) 20 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE TRANSMISSION 2 (VREF2) BU5T-14474-AB
51 * * Not Used N/A
52 * * Not Used N/A
53 * * Not Used N/A
54 * * Not Used N/A
55 VET86 (YE-GY) 20 MONITOR - AUTOMATIC TRANSMISSION FLUID PUMP BU5T-14474-AB
56 * * Not Used N/A
57 LE450 (WH) 18 CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 2ND (UO2SIP-21) BU5T-14474-BB
58 * * Not Used N/A
59 LE451 (BN-YE) 18 CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SIP-11) BU5T-14474-BB
60 * * Not Used N/A
61 * * Not Used N/A
62 * * Not Used N/A
63 * * Not Used N/A
64 * * Not Used N/A
65 * * Not Used N/A
66 * * Not Used N/A
67 * * Not Used N/A
68 VET33 (WH-OG) 20 SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) + BU5T-14474-AB
69 VET73 (GN-BU) 20 SENSOR - INPUT SHAFT SPEED A (ISSA) BU5T-14474-AB
70 VET74 (BU) 20 SENSOR - INPUT SHAFT SPEED B (ISSB) BU5T-14474-AB
71 VET26 (BN-RD) 20 SENSOR - OUTPUT SHAFT SPEED (OSS) BU5T-14474-AB
72 * * Not Used N/A
73 * * Not Used N/A
74 RET24 (BN-BU) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND) BU5T-14474-AB
75 * * Not Used N/A
76 CETA7 (GY-YE) 18 CTRL MOD. - POWERTRAIN # ENGINE COOLANT BYPASS VALVE - TRANSMISSION HEATING (ECBV_TH) GU5T-14474-CA
77 CE233 (WH-OG) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12) GU5T-14474-CA
78 CET44 (BU-BN) 20 CTRL MOD. - POWERTRAIN # SOLENOID SHIFT CONTROL LOW-SIDE 3 (SS3) BU5T-14474-AB
79 * * Not Used N/A
80 * * Not Used N/A
81 CE234 (BN-WH) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 2ND (HTR22) BU5T-14474-BB
82 * * Not Used N/A
83 * * Not Used N/A
84 * * Not Used N/A
85 VET81 (YE-GY) 20 SENSOR - TRANSMISSION RANGE # PWM OUTPUT 2 (TR-P2) BU5T-14474-AB
86 VET84 (BN-GN) 20 SENSOR - TRANSMISSION RANGE # PWM OUTPUT 1 (TR-P1) BU5T-14474-AB
87 * * Not Used N/A
88 * * Not Used N/A
89 * * Not Used N/A
90 * * Not Used N/A
