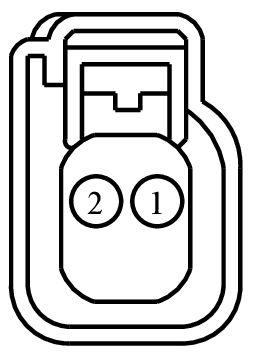

Connector End View (C1322) - FRONT FOG LAMP LH
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1322 | FRONT FOG LAMP LH | BK | 15K867 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| BU5T-14474-UA | DU2Z-14474-DA | 1.50 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBBA0 (YE-VT) | 22 | FUSE - 100 OR CIRCUIT BREAKER | BU5T-14474-UA | ||||
| 2 | VLF89 (BU-RD) | 20 | CTRL MOD. - HEADLAMP # FRONT FOG | BU5T-14474-UA | ||||
| 3 | CLF61 (GY-RD) | 22 | CTRL MOD. - DAYTIME RUNNING LIGHT LEFT | BU5T-14474-UA | ||||
| 4 | GD129 (BK-YE) | 16 | GROUND - HEADLAMP PANEL/GOR LEFT | 7C3T-14474-DA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-925
Service Part Number:
8U2Z-14S411-TA
Gauge:
14
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- A/C Compressor Clutch
- Lamp - Headlamp - High/Low Beam
