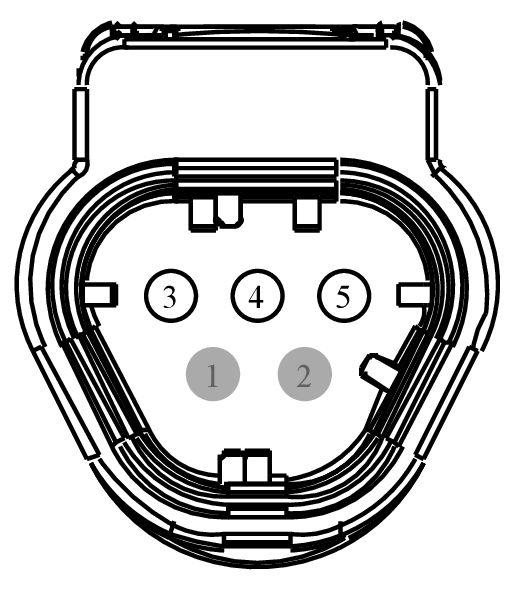

Connector End View (C1309) - HEV FRONT EVAPORATOR SHUT OFF VALVE (FESOV)
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1309 | HEV FRONT EVAPORATOR SHUT OFF VALVE (FESOV) | BK | 12A581 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-AEA | LU2Z-14474-CA | 1.50 |
| 97BG-14474-ADA | LU2Z-14474-CA | 1.50 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CYE11 (GY-YE) | 16 | CTRL MOD. - TRACTION BATTERY CONTROL # FRONT EVAPORATOR SHUT OFF | 97BG-14474-AEA | ||||
| 2 | GD131 (BK-GY) | 22 | GROUND - HEADLAMP PANEL/GOR RIGHT | 97BG-14474-ADA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1052
Service Part Number:
3U2Z-14S411-JLB
Gauge:
14
Pin material:
Tin (greased)
Cavities:
2
Vehicle Uses:
- A/C Compressor Clutch
- Actuator - Door Lock
- Actuator - Door Lock - LH - Front
- Actuator - Door Lock - LH - Rear
- Actuator - Door Lock - LH - Sliding Door
- Actuator - Door Lock - RH - Front
- Actuator - Door Lock - RH - Rear
- Actuator - Door Lock - RH - Sliding Door
- Actuator - Liftgate Glass
- Lamp - Headlamp - Low Beam
- Lamp - License
- Lamp - Side Marker
- Motor - Power Window - LH - Rear
- Pump - Fuel (External)
- Sensor - Side Impact
- Solenoid - Brake Shift Park Interlock
- Speaker - Door (front)
- Speaker - Door (rear)
- Speaker - Front
- Speaker - Rear
- Speaker - Tweeter - LH - Front
- Speaker - Tweeter - LH - Rear
- Speaker - Tweeter - RH - Front
- Speaker - Tweeter - RH - Rear
