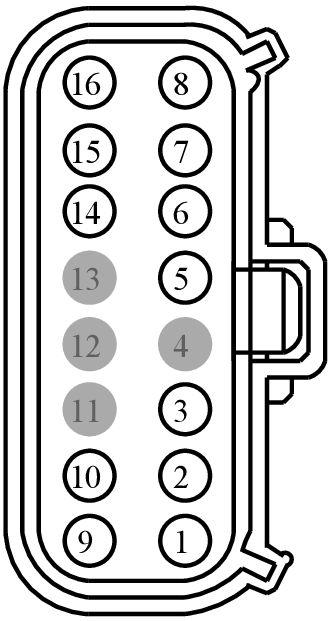

Connector End View (C1285) - HEADLAMP ASSEMBLY RH

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1285	HEADLAMP ASSEMBLY RH	BK	12A581	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
JU5T-14474-ACA	Not Available
JU5T-14474-AAA	Not Available
JU5T-14474-ABA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CLF05 (BU-GN)	14	CTRL MOD. - BEAM LOW RIGHT	JU5T-14474-ACA
2	CLS25 (YE-VT)	20	CTRL MOD. - TURN LAMP RIGHT FRONT	JU5T-14474-AAA
3	CLF62 (VT-WH)	14	CTRL MOD. - DAYTIME RUNNING LIGHT RIGHT	JU5T-14474-ACA
4	*	*	Not Used	N/A
5	VLF33 (BU)	22	CTRL MOD. - MOTOR DYNAMIC BENDING LIGHT RIGHT (LIN BUS) +	JU5T-14474-AAA
6	VDN14 (YE-VT)	22	CTRL MOD. - LIN BUS # 14	JU5T-14474-AAA
7	CBBA1 (BU-GY)	22	FUSE - 101 OR CIRCUIT BREAKER	JU5T-14474-AAA
8	CBBA1 (BU-GY)	16	FUSE - 101 OR CIRCUIT BREAKER	JU5T-14474-ABA
9	CLS05 (BU-GY)	22	CTRL MOD. - PARK	JU5T-14474-AAA
10	GD131 (BK-GY)	14	GROUND - HEADLAMP PANEL/GOR RIGHT	JU5T-14474-ACA
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	CLS58 (BU-WH)	22	LAMP - TURN FRONT RIGHT # SIGNAL OUT	JU5T-14474-AAA
15	GD131 (BK-GY)	22	GROUND - HEADLAMP PANEL/GOR RIGHT	JU5T-14474-AAA
16	CBB21 (BK-WH)	22	FUSE - 21 OR CIRCUIT BREAKER	JU5T-14474-AAA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1279

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ADA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Lamp - Headlamp - High/Low Beam
Mating Connector WPT-1404
Module - Heated Seat (driver)
Module - Transfer Case Shift Control
