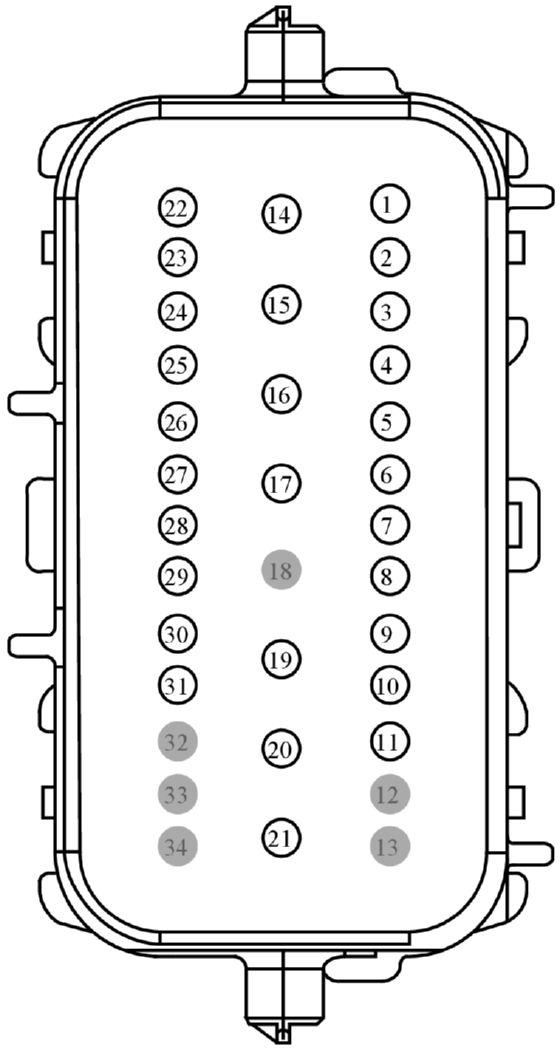

Connector End View (C1284) - HEADLAMP ASSEMBLY LH

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1284	HEADLAMP ASSEMBLY LH	BK	12A581	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
JU5T-14474-ACA	Not Available
JU5T-14474-ABA	Not Available
JU5T-14474-AAA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CLF04 (BN-BU)	14	CTRL MOD. - BEAM LOW LEFT	JU5T-14474-ACA
2	CLS21 (BU-GN)	18	CTRL MOD. - TURN LAMP LEFT FRONT	JU5T-14474-ABA
3	CLF61 (GY-BU)	14	CTRL MOD. - DAYTIME RUNNING LIGHT LEFT	JU5T-14474-ACA
4	*	*	Not Used	N/A
5	VLF32 (YE)	22	CTRL MOD. - MOTOR DYNAMIC BENDING LIGHT LEFT (LIN BUS) +	JU5T-14474-AAA
6	VDN14 (YE)	22	CTRL MOD. - LIN BUS # 14	JU5T-14474-AAA
7	GD129 (BK-YE)	20	GROUND - HEADLAMP PANEL/GOR LEFT	JU5T-14474-AAA
8	CBBA0 (YE-VT)	16	FUSE - 100 OR CIRCUIT BREAKER	JU5T-14474-ABA
9	CLS05 (BU-GY)	22	CTRL MOD. - PARK	JU5T-14474-AAA
10	GD129 (BK-YE)	14	GROUND - HEADLAMP PANEL/GOR LEFT	JU5T-14474-ACA
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	CLS56 (YE-GN)	22	LAMP - TURN FRONT LEFT OR COMMON# SIGNAL OUT	JU5T-14474-AAA
15	GD129 (BK-YE)	22	GROUND - HEADLAMP PANEL/GOR LEFT	JU5T-14474-AAA
16	CBB21 (BK)	22	FUSE - 21 OR CIRCUIT BREAKER	JU5T-14474-AAA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1279

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ADA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Lamp - Headlamp - High/Low Beam
Mating Connector WPT-1404
Module - Heated Seat (driver)
Module - Transfer Case Shift Control
