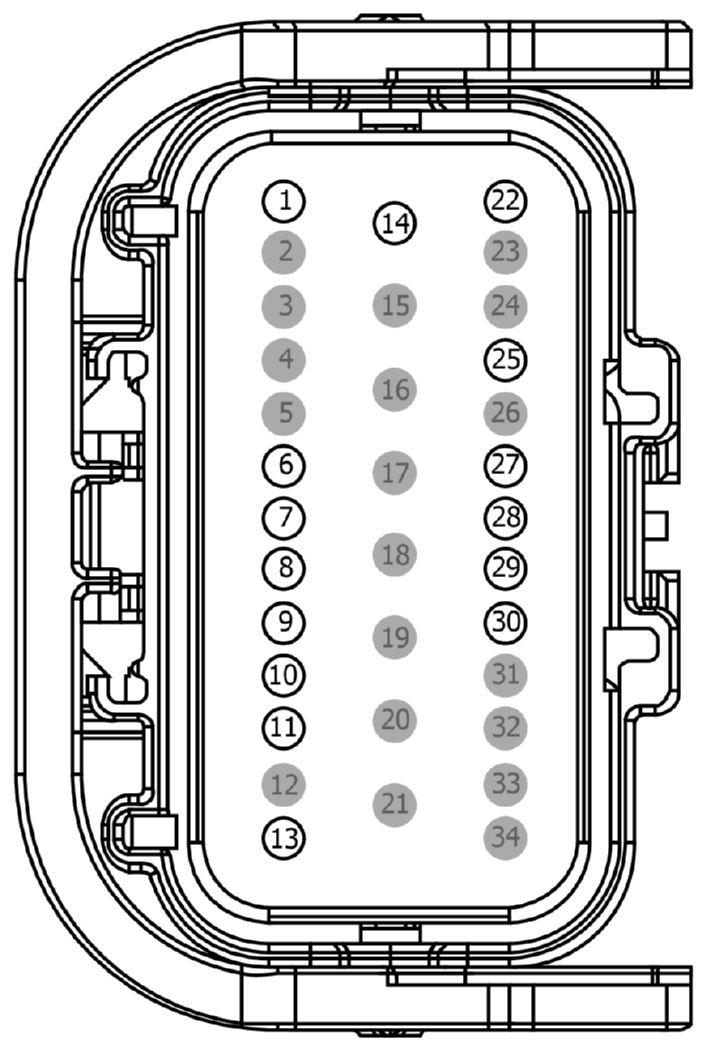

Connector End View (C1275) - CAMSHAFT POSITION BANK 1 SENSOR 1 (CMP11)
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1275 | CAMSHAFT POSITION BANK 1 SENSOR 1 (CMP11) | BK | 12C508 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| EU5T-14474-GAB | KU2Z-14474-CA | 1.20 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VE706 (BN-BU) | 18 | SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP1) [CID-H] (CID1) | EU5T-14474-GAB | ||||
| 2 | RE405 (GN-WH) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) | EU5T-14474-GAB | ||||
| 3 | LE111 (VT-GN) | 18 | CTRL MOD. - POWERTRAIN # POWER SUPPLY SENSORS | EU5T-14474-GAB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1492
Service Part Number:
HU2Z-14S411-BA
Gauge:
18
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Coil - Ignition
- Monitor - Crankcase Ventilation
- Motor - Intercooler Pump
- Sensor - Cam Shaft Position
- Sensor - Crank Shaft Position
- Sensor - Delta Pressure Feedback EGR
- Sensor - Exhaust Gas Pressure
- Sensor - Intake Manifold Runner Control
- Sensor - Manifold Absolute Pressure (MAP)
- Sensor - Oil Pressure
