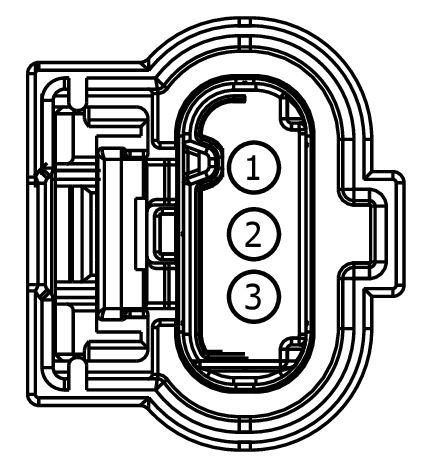

Connector End View (C1273A) - GLOW PLUG CONTROL MODULE (GPCM)
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1273A |
GLOW PLUG CONTROL MODULE (GPCM) |
BK |
12A581 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| 5L3T-14474-AA |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
SB205 (GY-RD) |
4 |
FUSE - 205 OR CIRCUIT BREAKER |
5L3T-14474-AA |
