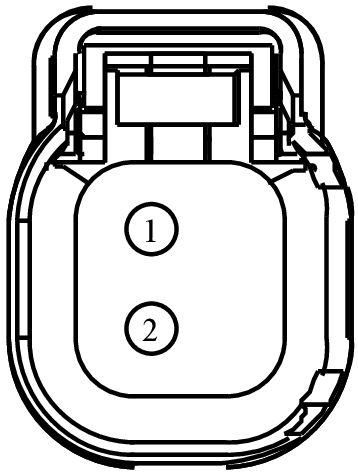

Connector End View (C1271) - EXHAUST PRESSURE (EP) SENSOR
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1271 | EXHAUST PRESSURE (EP) SENSOR | BK | 12C508 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| EU5T-14474-GAB | KU2Z-14474-CA | 1.20 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | LE423 (GN-VT) | 16 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) | EU5T-14474-GAB | ||||
| 2 | RE238 (BU-BN) | 18 | CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR - | EU5T-14474-GAB | ||||
| 3 | VE921 (GY-BU) | 18 | TRANSDUCER - EXHAUST GAS RECIRCULATION PRESSURE | EU5T-14474-GAB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1492
Service Part Number:
HU2Z-14S411-BA
Gauge:
18
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Coil - Ignition
- Monitor - Crankcase Ventilation
- Motor - Intercooler Pump
- Sensor - Cam Shaft Position
- Sensor - Crank Shaft Position
- Sensor - Delta Pressure Feedback EGR
- Sensor - Exhaust Gas Pressure
- Sensor - Intake Manifold Runner Control
- Sensor - Manifold Absolute Pressure (MAP)
- Sensor - Oil Pressure
