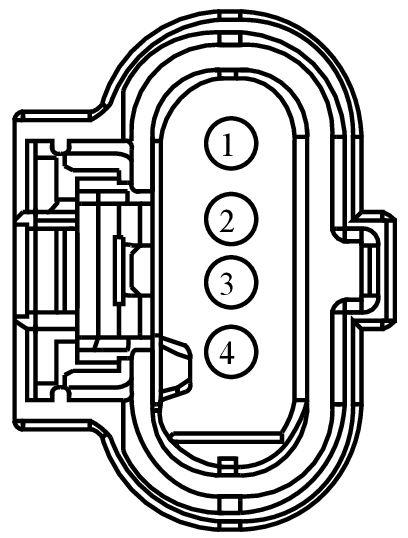

Connector End View (C1260) - AIR CONDITIONING (A/C) PRESSURE TRANSDUCER
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1260 | AIR CONDITIONING (A/C) PRESSURE TRANSDUCER | BK | 14B060/12A581 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 3F2T-14474-RA | DU2Z-14474-BA | 0.64 |
| 3F2T-14474-SA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | RE407 (YE-VT) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) | 3F2T-14474-RA | ||||
| 1 | RE433 (BU-GY) | 20 | CTRL MOD. - POWERTRAIN # TEMPERATURE MANIFOLD ABSOLUTE PRESSURE SENSOR | 3F2T-14474-RA | ||||
| 1 | RE407 (YE-VT) | 22 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) | 3F2T-14474-SA | ||||
| 2 | LH315 (WH-GN) | 22 | CTRL MOD. - A/C PRESSURE TRANSDUCER | 3F2T-14474-SA | ||||
| 2 | LH315 (WH-GN) | 20 | CTRL MOD. - A/C PRESSURE TRANSDUCER | 3F2T-14474-RA | ||||
| 3 | LE424 (YE-GN) | 20 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (VREF) | 3F2T-14474-RA | ||||
| 3 | LE424 (YE-GN) | 22 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (VREF) | 3F2T-14474-SA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1400
Service Part Number:
9U2Z-14S411-CC
Gauge:
20
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Monitor - Crankcase Ventilation
- Sensor - Air Suspension
- Sensor - Front Park Aid (FPA)
- Sensor - Occupant Classification
- Sensor - Reverse Park Aide (RPA)
- Switch - A/C Compressor Clutch Cycling
- Switch - A/C High Pressure
Pigtail Kit Part Number WPT-1578
Service Part Number:
9U2Z-14S411-CD
Gauge:
20
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Lamp - License
- Monitor - Crankcase Ventilation
- Sensor - Air Quality
- Sensor - Air Suspension - LH - Front
- Sensor - Air Suspension - LH - Rear
- Sensor - Air Suspension - RH - Front
- Sensor - Air Suspension - RH - Rear
- Sensor - Front Park Aid (FPA)
- Sensor - Fuel Tank Pressure Transducer
- Sensor - Headlamp Leveling
- Sensor - Occupant Classification
- Sensor - Reverse Park Aide (RPA)
- Switch - A/C Compressor Clutch Cycling
- Switch - A/C High Pressure
Pigtail Kit Part Number WPT-1315
Service Part Number:
9U2Z-14S411-CB
Gauge:
20
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Monitor - Crankcase Ventilation
- Sensor - Air Suspension
- Sensor - Front Park Aid (FPA)
- Sensor - Occupant Classification
- Sensor - Reverse Park Aide (RPA)
- Switch - A/C Compressor Clutch Cycling
- Switch - A/C High Pressure
