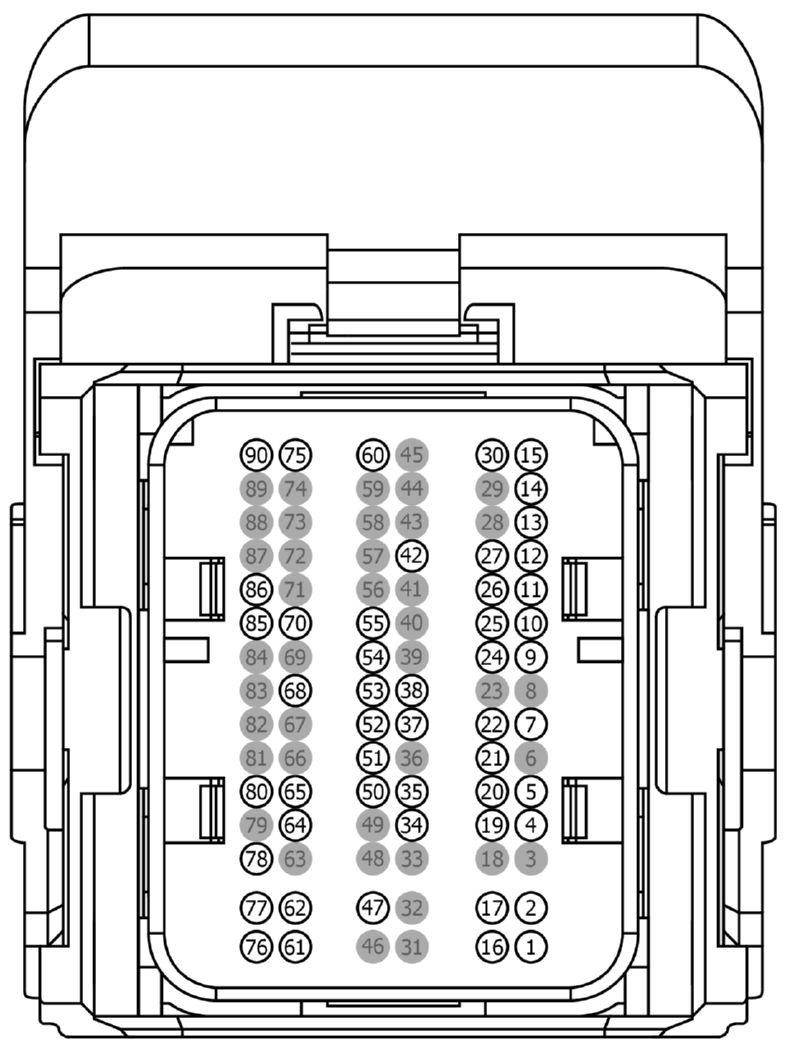

Connector End View (C1233T) - POWERTRAIN CONTROL MODULE (PCM)

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1233T	POWERTRAIN CONTROL MODULE (PCM)	BK	15525	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
BU5T-14474-AB	DU2Z-14474-CA	0.64
GU5T-14474-CA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	CET40 (GN-OG)	20	SWITCH - TRANSMISSION RANGE # PARK/NEUTRAL (TRSW-PN)	BU5T-14474-AB
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	VE722 (BN)	20	SENSOR - EXHAUST GAS TEMPERATURE 1 (EGT1) (PRE CAT)	BU5T-14474-AB
12	VE723 (GN-VT)	20	SENSOR - EXHAUST GAS TEMPERATURE 2 (EGT2) +	BU5T-14474-AB
13	VE771 (WH-VT)	20	SENSOR - EXHAUST GAS TEMPERATURE 3 (EGT3) +	BU5T-14474-AB
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	CE354 (BN-BU)	20	CTRL MOD. - POWERTRAIN # REDUCTANT PUMP MOTOR (RPMP) PWR	GU5T-14474-CA
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	VE529 (GN-OG)	20	MONITOR - REDUCTANT PUMP	BU5T-14474-AB
21	*	*	Not Used	N/A
22	*	*	Not Used	N/A
23	*	*	Not Used	N/A
24	*	*	Not Used	N/A
25	*	*	Not Used	N/A
26	RE722 (BU-OG)	20	SENSOR - EXHAUST GAS TEMPERATURE 1 (EGT1) (PRE CAT)-	BU5T-14474-AB
27	RE723 (WH-BU)	20	SENSOR - EXHAUST GAS TEMPERATURE 2 (EGT2) -	BU5T-14474-AB
28	RE771 (GY-OG)	20	SENSOR - EXHAUST GAS TEMPERATURE 3 (EGT3) -	BU5T-14474-AB
29	*	*	Not Used	N/A
30	*	*	Not Used	N/A
31	*	*	Not Used	N/A
32	*	*	Not Used	N/A
33	*	*	Not Used	N/A
34	*	*	Not Used	N/A
35	*	*	Not Used	N/A
36	RE406 (GY-VT)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (SIGRTN)	BU5T-14474-AB
37	VE749 (YE-VT)	20	SENSOR - DIESEL PARTICULATE FILTER DELTA PRESSURE (DPFDP) +	BU5T-14474-AB
38	LE425 (BU-BN)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE TRANSMISSION (VREF)	BU5T-14474-AB
39	*	*	Not Used	N/A
40	VE833 (BU-WH)	20	SENSOR - REDUCTANT PRESSURE (RDPS)	BU5T-14474-AB
41	VE776 (BN-WH)	20	SENSOR - EXHAUST GAS TEMPERATURE 4 (EGT4) +	BU5T-14474-AB
42	*	*	Not Used	N/A
43	*	*	Not Used	N/A
44	*	*	Not Used	N/A
45	*	*	Not Used	N/A
46	*	*	Not Used	N/A
47	*	*	Not Used	N/A
48	*	*	Not Used	N/A
49	*	*	Not Used	N/A
50	*	*	Not Used	N/A
51	*	*	Not Used	N/A
52	*	*	Not Used	N/A
53	*	*	Not Used	N/A
54	*	*	Not Used	N/A
55	RE353 (GN-VT)	20	CTRL MOD. - POWERTRAIN # REDUCTANT PRESSURE SENSOR (G_RDPS) -	BU5T-14474-AB
56	RE776 (GN-BU)	20	SENSOR - EXHAUST GAS TEMPERATURE 4 (EGT4) -	BU5T-14474-AB
57	*	*	Not Used	N/A
58	*	*	Not Used	N/A
59	*	*	Not Used	N/A
60	*	*	Not Used	N/A
61	VE351 (VT-OG)	20	CTRL MOD. - POWERTRAIN # REDUCTANT INJECTOR METERING VALVE PLUS (RDMV+)	GU5T-14474-CA
62	VE350 (GY)	20	CTRL MOD. - POWERTRAIN # REDUCTANT INJECTOR METERING VALVE MINUS (RDMV-)	GU5T-14474-CA
63	*	*	Not Used	N/A
64	*	*	Not Used	N/A
65	*	*	Not Used	N/A
66	*	*	Not Used	N/A
67	*	*	Not Used	N/A
68	LE461 (GY-YE)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE TRANSMISSION 2 (VREF2)	BU5T-14474-AB
69	VE838 (VT-GY)	20	SENSOR - REDUCTANT TANK TEMPERATURE (TRATS) +	BU5T-14474-AB
70	RE838 (BU-OG)	20	SENSOR - REDUCTANT TANK TEMPERATURE (TRATS) -	BU5T-14474-AB
71	*	*	Not Used	N/A
72	*	*	Not Used	N/A
73	*	*	Not Used	N/A
74	*	*	Not Used	N/A
75	*	*	Not Used	N/A
76	*	*	Not Used	N/A
77	*	*	Not Used	N/A
78	*	*	Not Used	N/A
79	*	*	Not Used	N/A
80	*	*	Not Used	N/A
81	*	*	Not Used	N/A
82	*	*	Not Used	N/A
83	*	*	Not Used	N/A
84	*	*	Not Used	N/A
85	*	*	Not Used	N/A
86	*	*	Not Used	N/A
87	*	*	Not Used	N/A
88	*	*	Not Used	N/A
89	*	*	Not Used	N/A
90	*	*	Not Used	N/A
