Connector End View (C1233E) - POWERTRAIN CONTROL MODULE (PCM)

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: Description Color Harness Base Part # Service Pigtail
C1233E POWERTRAIN CONTROL MODULE (PCM) BK 12C508 part# N/A Not Available

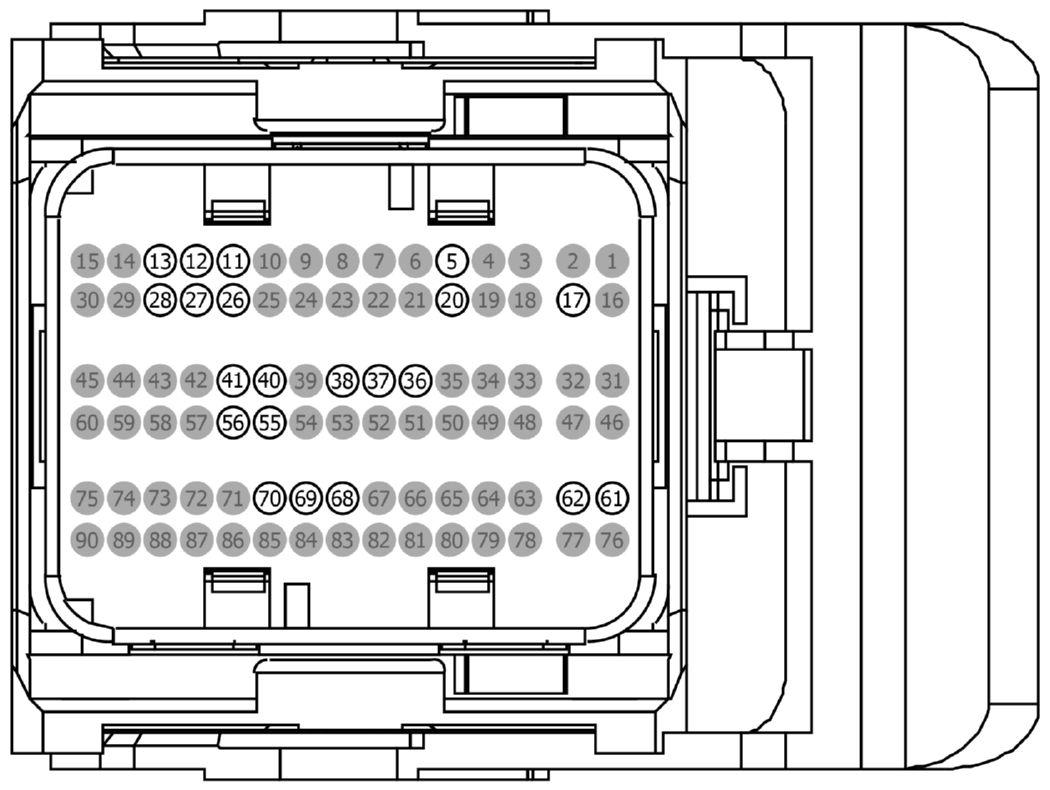

GFDWR124146Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
GU5T-14474-DA Not Available
GU5T-14474-CA DU2Z-14474-BA 0.64
BU5T-14474-BB DU2Z-14474-CA 0.64
BU5T-14474-AB DU2Z-14474-CA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CE256 (BU-OG) 18 CTRL MOD. - POWERTRAIN # FUEL VOLUME CONTROL VALVE (FVCV) + GU5T-14474-CA
2 * * Not Used N/A
3 * * Not Used N/A
4 CE328 (YE-VT) 18 CTRL MOD. - POWERTRAIN # POS. CRANKCASE VENTIL. FITTING HEATER CONTROL (PCVFHC) BU5T-14474-BB
5 * * Not Used N/A
6 * * Not Used N/A
7 * * Not Used N/A
8 * * Not Used N/A
9 RE774 (GN-OG) 20 SENSOR - ENGINE OIL PRESSURE - BU5T-14474-AB
10 * * Not Used N/A
11 VE774 (YE-GN) 20 SENSOR - ENGINE OIL PRESSURE + BU5T-14474-AB
12 * * Not Used N/A
13 VE740 (VT-GY) 20 SENSOR - INTAKE AIR TEMPERATURE (IAT) BU5T-14474-AB
14 * * Not Used N/A
15 VE820 (GY) 20 SENSOR - THROTTLE POSITION (TPS) BU5T-14474-AB
16 * * Not Used N/A
17 * * Not Used N/A
18 * * Not Used N/A
19 CE209 (BN) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 5 (INJ) + GU5T-14474-DA
20 * * Not Used N/A
21 * * Not Used N/A
22 CE358 (GY-YE) 18 CTRL MOD. - POWERTRAIN # PUMP VARIABLE OIL GU5T-14474-CA
23 CE412 (YE-VT) 18 CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+) GU5T-14474-CA
24 CE426 (BU-GN) 18 CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-) GU5T-14474-CA
25 * * Not Used N/A
26 * * Not Used N/A
27 * * Not Used N/A
28 * * Not Used N/A
29 * * Not Used N/A
30 RE804 (GY-BU) 20 SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (TMAP) - BU5T-14474-AB
31 VE804 (GN-BN) 18 SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (TMAP) + BU5T-14474-BB
32 LE458 (BU-WH) 20 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2) BU5T-14474-AB
33 * * Not Used N/A
34 VE716 (YE) 20 SENSOR - ENGINE COOLANT TEMPERATURE (ECT) BU5T-14474-AB
35 * * Not Used N/A
36 RE454 (YE-GN) 18 CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 BU5T-14474-BB
37 LE143 (GN-BN) 20 CTRL MOD. - POWERTRAIN # CAMSHAFT SENSOR 1 + BU5T-14474-AB
38 VE706 (BN-BU) 20 SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP1) [CID-H] (CID1) BU5T-14474-AB
39 RE405 (GN-WH) 20 CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) BU5T-14474-AB
40 RE209 (WH-GN) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 5 (INJ) - GU5T-14474-DA
41 * * Not Used N/A
42 * * Not Used N/A
43 CE257 (GY-BN) 18 CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE RELIEF VALVE (FRPRV) GU5T-14474-CA
44 * * Not Used N/A
45 LE139 (BN-WH) 20 CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. VALVE + GU5T-14474-CA
46 * * Not Used N/A
47 * * Not Used N/A
48 * * Not Used N/A
49 * * Not Used N/A
50 * * Not Used N/A
51 * * Not Used N/A
52 * * Not Used N/A
53 * * Not Used N/A
54 LE437 (YE) 20 CTRL MOD. - POWERTRAIN # TURBO POSITION SENSOR + BU5T-14474-AB
55 RE476 (GN-OG) 20 CTRL MOD. - POWERTRAIN # SIGNAL RETURN TURBOCHARGER ACTUATOR BU5T-14474-AB
56 RE180 (GY-BU) 20 CTRL MOD. - POWERTRAIN # EXHAUST GAS VALVE POSITION SENSOR - BU5T-14474-AB
57 CE508 (VT-BN) 20 CTRL MOD. - EXHAUST GAS RECIRCULATION BU5T-14474-AB
58 * * Not Used N/A
59 * * Not Used N/A
60 LE180 (YE-BU) 20 CTRL MOD. - POWERTRAIN # EXHAUST GAS VALVE POSITION SENSOR + BU5T-14474-AB
61 * * Not Used N/A
62 CE210 (GN-WH) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 6 (INJ) + GU5T-14474-DA
63 CE207 (VT-GY) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) + GU5T-14474-DA
64 CE457 (BN-GN) 18 CTRL MOD. - POWERTRAIN # SOLENOID EGR COOLING BYPASS VALVE GU5T-14474-CA
65 * * Not Used N/A
66 RE139 (GY-OG) 20 CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. VALVE - GU5T-14474-CA
67 * * Not Used N/A
68 * * Not Used N/A
69 * * Not Used N/A
70 * * Not Used N/A
71 * * Not Used N/A
72 RE405 (GN-WH) 18 CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) BU5T-14474-BB
73 VE727 (BU-BN) 18 SENSOR - FUEL RAIL PRESSURE/INJECTION PRESSURE (FRP) (IPS) BU5T-14474-BB
74 LE238 (GY) 18 CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR + BU5T-14474-BB
75 * * Not Used N/A
76 * * Not Used N/A
77 * * Not Used N/A
78 VE765 (GY-BU) 20 SENSOR - EXHAUST GAS RECIRCULATION COOLER OUTLET TEMPERATURE + BU5T-14474-AB
79 RE135 (GN-BN) 20 CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKPN) - BU5T-14474-AB
80 VE711 (YE-VT) 20 SENSOR - CRANKSHAFT POSITION (CKPP) + BU5T-14474-AB
81 LE459 (GY) 20 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 3 (VREF3) BU5T-14474-AB
82 * * Not Used N/A
83 RE210 (GY-BN) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 6 (INJ) - GU5T-14474-DA
84 RE207 (GN-VT) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) - GU5T-14474-DA
85 * * Not Used N/A
86 * * Not Used N/A
87 CE431 (WH) 18 CTRL MOD. - POWERTRAIN # VARIABLE NOZZLE TURBO MOTOR + GU5T-14474-CA
88 CH305 (BU-BN) 20 CTRL MOD. - POWERTRAIN # COOLANT PUMP BYPASS CONTROL CLOSE (CPBC) BU5T-14474-AB
89 * * Not Used N/A
90 VE712 (BU-GY) 20 SENSOR - CYLINDER HEAD TEMPERATURE (CHT) BU5T-14474-AB
91 RE138 (BU-GN) 20 CTRL MOD. - POWERTRAIN # CYLINDER HEAD TEMPERATURE SENSOR BU5T-14474-AB
92 VE728 (GN) 20 SENSOR - FUEL RAIL TEMPERATURE (FRT) BU5T-14474-AB
93 RE405 (GN-WH) 20 CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) BU5T-14474-AB
94 VE921 (GY-BU) 20 TRANSDUCER - EXHAUST GAS RECIRCULATION PRESSURE BU5T-14474-AB
95 CE476 (BU-WH) 20 CTRL MOD. - POWERTRAIN # CYLINDER DEACTIVATION-CYLINDER 7 BU5T-14474-AB
96 * * Not Used N/A
97 * * Not Used N/A
98 * * Not Used N/A
99 RE405 (GN-WH) 20 CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) BU5T-14474-AB
100 * * Not Used N/A
101 VE764 (BU-OG) 20 SENSOR - EXHAUST GAS RECIRCULATION COOLER INLET TEMPERATURE + BU5T-14474-AB
102 * * Not Used N/A
103 CE208 (YE-OG) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) + GU5T-14474-DA
104 CE205 (GN-BU) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) + GU5T-14474-DA
105 CE206 (GY-YE) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) + GU5T-14474-DA
106 * * Not Used N/A
107 * * Not Used N/A
108 CE432 (BU) 18 CTRL MOD. - POWERTRAIN # VARIABLE NOZZLE TURBO MOTOR - GU5T-14474-CA
109 * * Not Used N/A
110 * * Not Used N/A
111 * * Not Used N/A
112 * * Not Used N/A
113 LE423 (GN-VT) 20 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) BU5T-14474-AB
114 LE232 (GY-YE) 20 CTRL MOD. - POWERTRAIN # FUEL TEMPERATURE SENSOR (VREF) BU5T-14474-AB
115 CMC24 (GY) 20 SWITCH - OIL PRESSURE BU5T-14474-AB
116 RE232 (VT-WH) 20 CTRL MOD. - POWERTRAIN # FUEL TEMP. SENSOR BU5T-14474-AB
117 VE785 (GN-WH) 20 SENSOR - FUEL RAIL PRESSURE (FRPS) BU5T-14474-AB
118 * * Not Used N/A
119 * * Not Used N/A
120 * * Not Used N/A
121 LE134 (YE) 20 CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) BU5T-14474-AB
122 * * Not Used N/A
123 RE134 (BU-OG) 20 CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) BU5T-14474-AB
124 RE208 (BU) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) - GU5T-14474-DA
125 RE205 (YE-BU) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) - GU5T-14474-DA
126 RE206 (BU-OG) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) - GU5T-14474-DA
