Connector End View (C1221) - INLINE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C1221 | INLINE | BK | 12C50814B485 | See Below | ||||

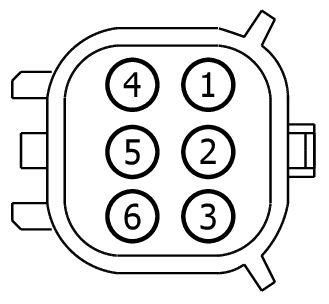

MALE
Harness
12C508

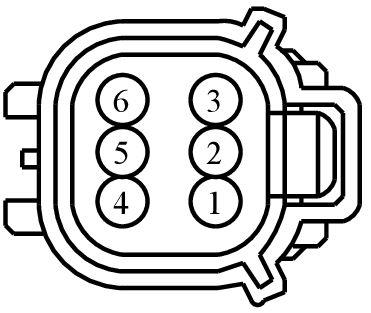

FEMALE
Harness
14B485
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 2L1T-14421-CA | EU2Z-14421-CA | 1.50 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CE264 (YE-VT) | 18 | 2L1T-14421-CA | |||
| 2 | CE263 (BU-GN) | 18 | 2L1T-14421-CA | |||
| 3 | CBK01 (BU) | 18 | 2L1T-14421-CA | |||
| 4 | CE262 (GN) | 18 | 2L1T-14421-CA | |||
| 5 | * | * | N/A | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CE264 (YE-VT) | 18 | 7C3T-14474-DA | |||
| 2 | CE263 (BU-GN) | 18 | 7C3T-14474-DA | |||
| 3 | CBK01 (BU) | 18 | 7C3T-14474-DA | |||
| 4 | CE262 (GN) | 18 | 7C3T-14474-DA | |||
| 5 | * | * | N/A | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1426
Service Part Number:
FU2Z-14S411-TA
Gauge:
16
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Camera - Reverse Park Aid
- Lamp - Park/Turn/Stop
- Sensor - Coolant Temperature
- Sensor - O2 (HEGO/ EGO)
