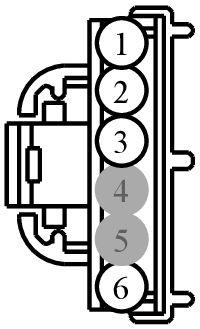

Connector End View (C980) - POWER SLIDING REAR WINDOW SWITCH

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C980	POWER SLIDING REAR WINDOW SWITCH	GY	14334	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
3F2T-14474-SA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBP02 (GN)	22	FUSE - 2 OR CIRCUIT BREAKER	3F2T-14474-SA
2	CPW59 (VT-BN)	22	SWITCH - POWER WINDOW REAR (BACKLIGHT) # UP OR RIGHT	3F2T-14474-SA
3	CPW58 (YE-OG)	22	SWITCH - POWER WINDOW REAR (BACKLIGHT) # DOWN OR LEFT	3F2T-14474-SA
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	GD347 (BK-YE)	22	GROUND - PILLAR C OR QUARTER PANEL LEFT	3F2T-14474-SA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1028

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-APA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Switch - Power Window - LH - Rear
Switch - Power Window - Passenger (Front)
Switch - Power Window - RH - Rear
