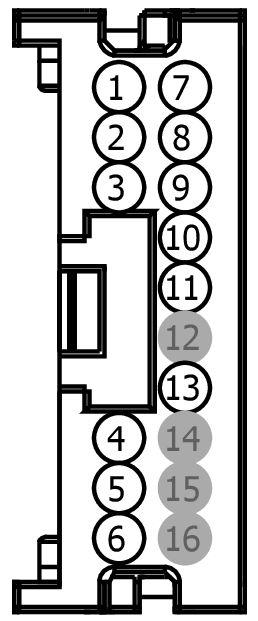

Connector End View (C930) - OVERHEAD CONSOLE

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C930	OVERHEAD CONSOLE	BK	14334	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
DU5T-14474-BA	LU2Z-14474-AA	0.50
GU5T-14474-KA	LU2Z-14474-AA	0.50

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CLN09 (YE-GN)	22	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)	DU5T-14474-BA
2	VLN04 (VT-GY)	22	CTRL MOD. - IP/SWITCH ILLUMINATION	DU5T-14474-BA
3	CLN70 (BN-GN)	22	SWITCH - OVERHEAD CONSOLE # EXTERNAL CONTROL 1	DU5T-14474-BA
4	CPR40 (YE-OG)	22	SWITCH - MOON/SUN ROOF CLOSE	DU5T-14474-BA
5	CPR31 (VT-BN)	22	SWITCH - MOON/SUN ROOF OPEN	DU5T-14474-BA
6	GD347 (BK-YE)	22	GROUND - PILLAR C OR QUARTER PANEL LEFT	DU5T-14474-BA
7	CR195 (YE-BU)	22	CTRL MOD. - EXTENDED POWER # OCCUPANT CLASSIFICATION MODULE POWER	DU5T-14474-BA
8	CR190 (GY-BN)	22	CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATION # OFF	DU5T-14474-BA
9	CR189 (BU-OG)	22	CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATION # ON	DU5T-14474-BA
10	VLN33 (GY-VT)	22	CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE)	GU5T-14474-KA
11	CPR85 (GN-WH)	22	SWITCH - SHADE MOON/SUN ROOF CLOSE	DU5T-14474-BA
12	*	*	Not Used	N/A
13	CPR86 (GY-BN)	22	SWITCH - SHADE MOON/SUN ROOF OPEN	DU5T-14474-BA
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1643

Courtesy of FORD MOTOR COMPANY

Service Part Number:

LU2Z-14S411-UA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses:

Lamp - Dome/Map
Switch - Seat (driver)
Switch - Seat (passenger)
Switch - Seat Passenger Side (2nd Row)
