Connector End View (C913) - INLINE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C913 | INLINE | LT GY | 14A005PIA | See Below | ||||

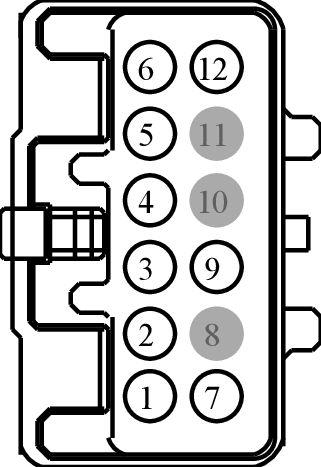

MALE
Harness
14A005

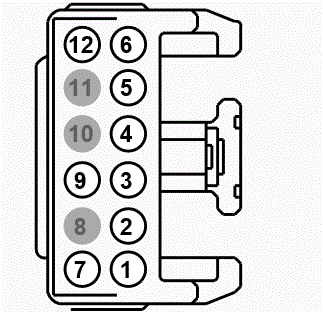

FEMALE
Harness
PIA
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| AU5T-14421-DA | EU2Z-14421-CA | 1.50 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CLS17 (YE-GY) | 22 | AU5T-14421-DA | |||
| 2 | CLN25 (WH-GN) | 20 | AU5T-14421-DA | |||
| 2 | CLN25 (WH-GN) | 22 | AU5T-14421-DA | |||
| 3 | VMP56 (BN-BU) | 22 | AU5T-14421-DA | |||
| 4 | VMP57 (YE-GN) | 22 | AU5T-14421-DA | |||
| 5 | DMP56 (*) | 22 | AU5T-14421-DA | |||
| 6 | CBB25 (WH-OG) | 22 | AU5T-14421-DA | |||
| 7 | CLS05 (BU-GY) | 22 | AU5T-14421-DA | |||
| 8 | * | * | N/A | |||
| 9 | VMF33 (GN-VT) | 22 | AU5T-14421-DA | |||
| 10 | * | * | N/A | |||
| 11 | * | * | N/A | |||
| 12 | GD348 (BK) | 22 | AU5T-14421-DA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CLS17 (*) | * | N/A | |||
| 2 | CLN25 (*) | * | N/A | |||
| 3 | VMP56 (*) | * | N/A | |||
| 4 | VMP57 (*) | * | N/A | |||
| 5 | DMP56 (*) | * | N/A | |||
| 6 | CBB25 (*) | * | N/A | |||
| 7 | CLS05 (*) | * | N/A | |||
| 8 | * | * | N/A | |||
| 9 | VMF33 (*) | * | N/A | |||
| 10 | * | * | N/A | |||
| 11 | * | * | N/A | |||
| 12 | GD348 (*) | * | N/A | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1047
Service Part Number:
9U2Z-14S411-ZA
Gauge:
14
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Switch - Moon Roof/Sun Roof
- Switch - Multifunction
- Switch - Sunshade
