Connector End View (C811) - INLINE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C811 | INLINE | BN | 1463214A005 | Not Available | ||||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| EU5T-14474-BAA | Not Available | |
| DU5T-14421-FA | EU2Z-14421-BA | 0.64 |
| 9U5T-14421-BA | EU2Z-14421-BA | 0.64 |
| AU5T-14421-DA | EU2Z-14421-CA | 1.50 |
| EU5T-14421-BA | EU2Z-14421-DA | 2.80 |
| 8U5T-14474-BB | DU2Z-14474-CA | 0.64 |
| EU5T-14474-FA | EU2Z-14474-AB | 2.80 |

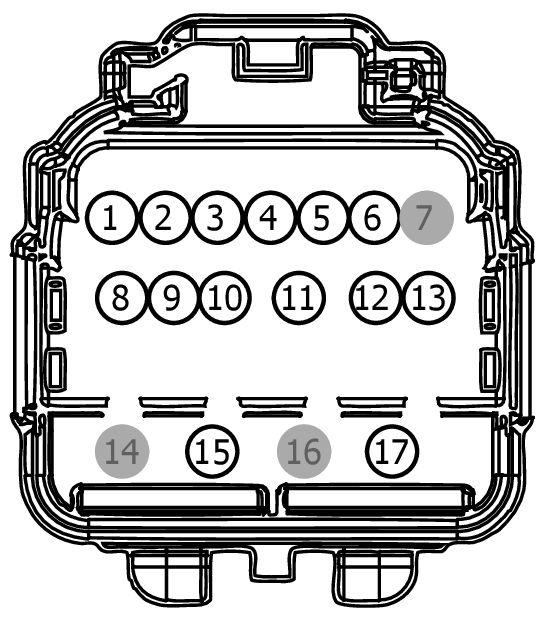

MALE
Harness
14632
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CPL39 (YE) | 22 | DU5T-14421-FA | |||
| 2 | VLN04 (VT-GY) | 22 | DU5T-14421-FA | |||
| 3 | CPL11 (GY-BN) | 20 | 9U5T-14421-BA | |||
| 4 | CPL13 (BN-GN) | 20 | 9U5T-14421-BA | |||
| 5 | VDN13 (BN) | 22 | DU5T-14421-FA | |||
| 6 | CBX07 (GN-RD) | 22 | DU5T-14421-FA | |||
| 7 | * | * | N/A | |||
| 8 | CPW18 (GY-VT) | 22 | DU5T-14421-FA | |||
| 9 | CPW17 (BN-GN) | 22 | DU5T-14421-FA | |||
| 10 | CPW14 (VT-WH) | 22 | DU5T-14421-FA | |||
| 11 | GD348 (BK-YE) | 22 | EU5T-14421-HA|*8U5T-14421-DA | |||
| 12 | VME12 (BN-WH) | 20 | AU5T-14421-DA | |||
| 13 | RME12 (BN-BU) | 20 | AU5T-14421-DA | |||
| 14 | * | * | N/A | |||
| 15 | CBP38 (GY-BU) | 14 | EU5T-14421-BA | |||
| 16 | * | * | N/A | |||
| 17 | GD348 (BK-YE) | 14 | EU5T-14421-BA | |||

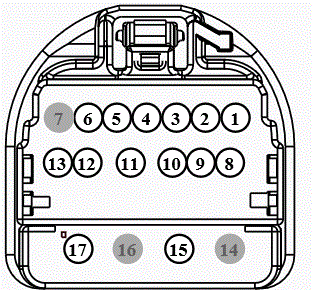

FEMALE
Harness
14A005
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CPL39 (YE) | 22 | 8U5T-14474-BB | |||
| 2 | VLN04 (VT-GY) | 22 | 8U5T-14474-BB | |||
| 3 | CPL11 (GY-BN) | 20 | 8U5T-14474-BB | |||
| 4 | CPL13 (BN-GN) | 20 | 8U5T-14474-BB | |||
| 5 | VDN13 (BN) | 22 | 8U5T-14474-BB | |||
| 6 | CBX07 (GN-RD) | 22 | 8U5T-14474-BB | |||
| 7 | * | * | N/A | |||
| 8 | CPW18 (GY-VT) | 22 | 8U5T-14474-BB | |||
| 9 | CPW17 (BN-GN) | 22 | 8U5T-14474-BB | |||
| 10 | CPW14 (VT-WH) | 22 | 8U5T-14474-BB | |||
| 11 | GD348 (BK-YE) | 22 | EU5T-14474-BAA | |||
| 12 | VME12 (BN-WH) | 18 | 7C3T-14474-DA | |||
| 13 | RME12 (BN-BU) | 18 | 7C3T-14474-DA | |||
| 14 | * | * | N/A | |||
| 15 | CBP38 (GY-BU) | 14 | EU5T-14474-FA | |||
| 16 | * | * | N/A | |||
| 17 | GD348 (BK-YE) | 14 | EU5T-14474-FA | |||
