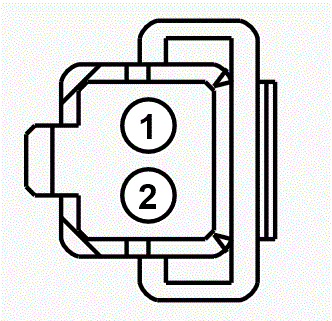

Connector End View (C676) - EXTERIOR MIRROR BLIND SPOT (BLIS) / CROSS TRAFFIC ALERT (CTA) LED, RIGHT
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C676 | EXTERIOR MIRROR BLIND SPOT (BLIS) / CROSS TRAFFIC ALERT (CTA) LED, RIGHT | GN | PIA | part# N/A | See Below |
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | * (*) | * | SENSOR - ALERT | N/A | ||||
| 2 | * (*) | * | GROUND - PILLAR C OR QUARTER PANEL RIGHT | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1197
Service Part Number:
3U2Z-14S411-PFB
Gauge:
20
Pin material:
Tin (greased)
Cavities:
2
Vehicle Uses:
- Mirror - Vanity
- Sensor - Speed
- Switch - Brake Deactivation
- Switch - Brake Pedal Position
- Switch - Brake Pressure
- Switch - Park Brake
- Switch - Speed Control
- Switch - Speed Control Deactivation
- Switch - Stop Lamp
- Switch - Visor
