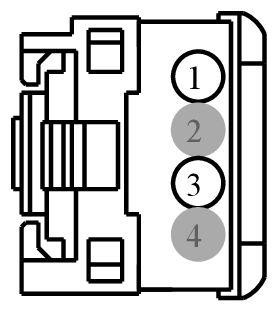

Connector End View (C660) - EXTERIOR MIRROR RH
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C660 | EXTERIOR MIRROR RH | BK | 14630 | part# N/A | Not Available |
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-DB | DU2Z-14474-AA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VE750 (GN-BU) | 20 | SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT) | 9U5T-14474-DB | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | RE407 (YE-VT) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) | 9U5T-14474-DB | ||||
| 4 | * | * | Not Used | N/A | ||||
