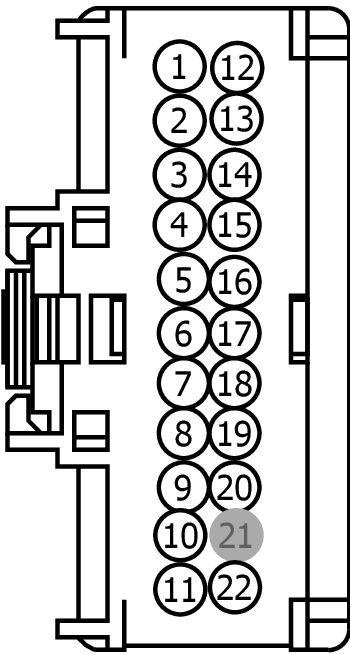

Connector End View (C622) - EXTERIOR MIRROR RH
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C622 | EXTERIOR MIRROR RH | BK | 14630 | part# N/A | See Below |
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| DU5T-14474-EAB | DU2Z-14474-CA | 0.64 |
| 8U5T-14474-BB | DU2Z-14474-CA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CRD14 (WH-OG) | 22 | CTRL MOD. - HEATER MIRROR RIGHT | DU5T-14474-EAB | ||||
| 2 | RE407 (YE-VT) | 22 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) | DU5T-14474-EAB | ||||
| 3 | CPM46 (WH-GN) | 22 | CTRL MOD. - RIGHT MIRROR MOTOR (VERTICAL) | DU5T-14474-EAB | ||||
| 4 | RPM08 (GN-BU) | 22 | CTRL MOD. - RIGHT MIRROR RETURN | DU5T-14474-EAB | ||||
| 5 | CPM48 (WH-OG) | 22 | CTRL MOD. - RIGHT MIRROR MOTOR (HORIZONTAL) | DU5T-14474-EAB | ||||
| 6 | VE750 (GN-BU) | 22 | SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT) | DU5T-14474-EAB | ||||
| 7 | CLS26 (BU-GY) | 22 | CTRL MOD. - TURN LAMP RIGHT MIRROR + | DU5T-14474-EAB | ||||
| 8 | GD238 (BK-WH) | 22 | GROUND - COWL SIDE/PILLAR A RIGHT | DU5T-14474-EAB | ||||
| 9 | VPM38 (BN-GN) | 22 | SENSOR - RIGHT MIRROR POSITION # VERTICAL | DU5T-14474-EAB | ||||
| 10 | VPM37 (BU-OG) | 22 | SENSOR - RIGHT MIRROR POSITION # HORIZONTAL | DU5T-14474-EAB | ||||
| 11 | LPM12 (BU-GY) | 22 | CTRL MOD. - SENSORS MIRROR POSITION (RIGHT) + | DU5T-14474-EAB | ||||
| 12 | CLS05 (BU-GY) | 22 | CTRL MOD. - PARK | DU5T-14474-EAB | ||||
| 13 | CRB07 (BN) | 22 | CTRL MOD. - BLINDSPOT WARNING # LED MIRROR RIGHT OR PASSENGER + | DU5T-14474-EAB | ||||
| 14 | CLN32 (BN-YE) | 22 | CTRL MOD. - PUDDLE LAMP RIGHT | DU5T-14474-EAB | ||||
| 15 | CLF75 (VT-BN) | 20 | CTRL MOD. - SPOTLIGHT # LAMP SPOTLIGHT RIGHT | 8U5T-14474-BB | ||||
| 16 | VPM44 (YE-VT) | 22 | CTRL MOD. - RIGHT MIRROR TELESCOPE (EXTEND) | DU5T-14474-EAB | ||||
| 17 | VPM43 (GN-OG) | 22 | CTRL MOD. - RIGHT MIRROR TELESCOPE (RETURN) | DU5T-14474-EAB | ||||
| 18 | CPM07 (BN) | 22 | CTRL MOD. - RIGHT MIRROR FOLD IN | DU5T-14474-EAB | ||||
| 19 | CPM40 (WH-OG) | 22 | CTRL MOD. - RIGHT MIRROR FOLD OUT (DRV) | DU5T-14474-EAB | ||||
| 20 | RRB07 (YE-VT) | 22 | CTRL MOD. - BLINDSPOT WARNING # LED MIRROR RIGHT OR PASSENGER - | DU5T-14474-EAB | ||||
| 21 | * | * | Not Used | N/A | ||||
| 22 | GD238 (BK-WH) | 22 | GROUND - COWL SIDE/PILLAR A RIGHT | DU5T-14474-EAB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1616
Service Part Number:
KU2Z-14S411-MA
Gauge:
20
Pin material:
Silver
Cavities:
22
Vehicle Uses:
- Connector - Inline
- Mirror - Sideview With Memory
