Connector End View (C611) - INLINE

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector Viewer - 150

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C611	INLINE	GY	14630/14H05714A005/14H057	See Below

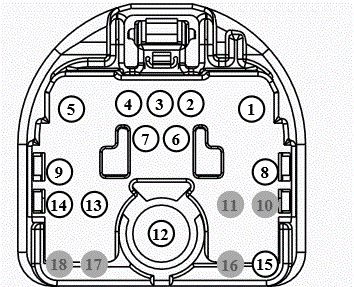

MALE

Harness

14630/14H057

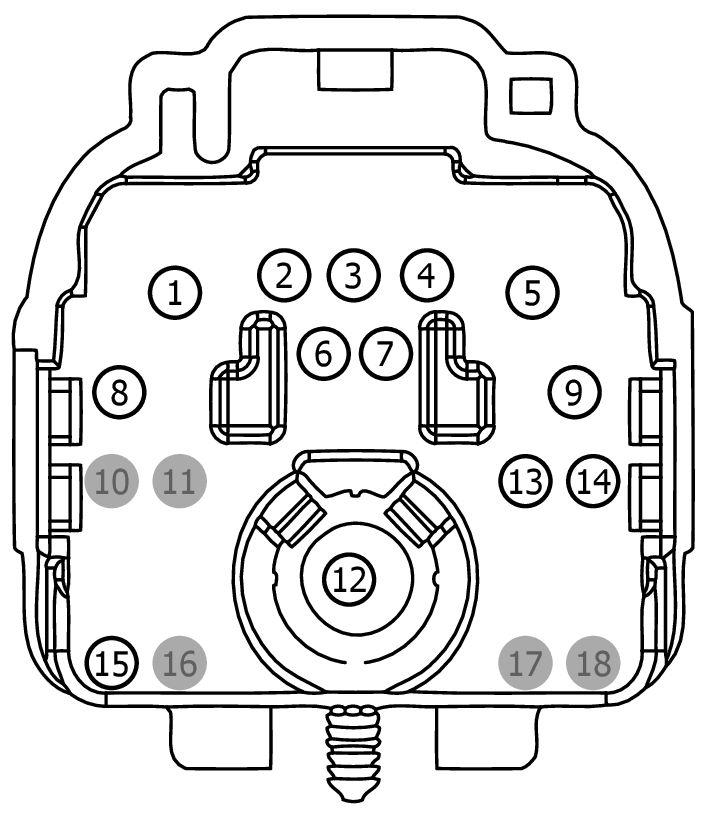

FEMALE

Harness

14A005/14H057

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
AU5T-14F495-BC	Not Available
AU5T-14F494-CC	Not Available
EU5T-14421-AA	EU2Z-14421-DA	2.80
DU5T-14421-FA	EU2Z-14421-BA	0.64
EU5T-14474-HA	EU2Z-14474-AB	2.80
DU5T-14474-EAB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	SBP26 (YE-RD)	16	EU5T-14421-AA
2	CLF73 (BN-GN)	22	DU5T-14421-FA
3	CLF74 (WH-GN)	22	DU5T-14421-FA
4	VPK40 (WH-OG)	22	DU5T-14421-FA
5	GD238 (BK-WH)	16	EU5T-14421-AA
6	RPW05 (GN-BN)	22	DU5T-14421-FA
7	RPK39 (VT-OG)	22	DU5T-14421-FA
8	CLS05 (BU-GY)	22	DU5T-14421-FA
9	CLF71 (VT-WH)	22	DU5T-14421-FA
10	*	*	N/A
11	*	*	N/A
12	VMP53 (BK)	20	AU5T-14F495-BC
13	VPK02 (VT-WH)	22	DU5T-14421-FA
14	RPK02 (GY-YE)	22	DU5T-14421-FA
15	CLF70 (GN)	22	DU5T-14421-FA
16	*	*	N/A
17	*	*	N/A
	18	*	*	N/A

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	SBP26 (YE-RD)	10	EU5T-14474-HA
2	CLF73 (BN-GN)	22	DU5T-14474-EAB
3	CLF74 (WH-GN)	22	DU5T-14474-EAB
4	VPK40 (WH-OG)	22	DU5T-14474-EAB
5	GD238 (BK)	10	EU5T-14474-HA
6	RPW05 (GN-BN)	22	DU5T-14474-EAB
7	RPK39 (VT-OG)	22	DU5T-14474-EAB
8	CLS05 (BU-GY)	22	DU5T-14474-EAB
9	CLF71 (VT-WH)	22	DU5T-14474-EAB
10	*	*	N/A
11	*	*	N/A
12	VMP54 (BK)	20	AU5T-14F494-CC
13	VPK02 (VT-WH)	22	DU5T-14474-EAB
14	RPK02 (GY-YE)	22	DU5T-14474-EAB
15	CLF70 (GN)	22	DU5T-14474-EAB
16	*	*	N/A
17	*	*	N/A
	18	*	*	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1510

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-BA

Gauge:

14 20

Pin material:

Tin & Silver

Cavities:

Vehicle Uses:

Connector - Inline
