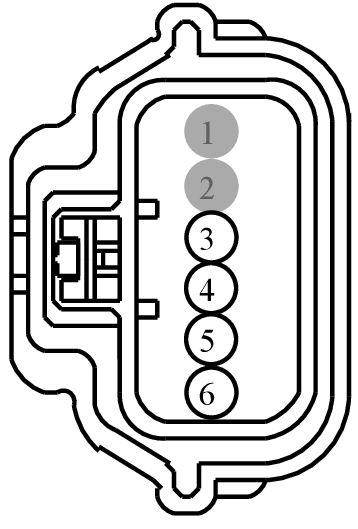

Connector End View (C603) - FRONT DOOR LATCH RH
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C603 | FRONT DOOR LATCH RH | BK | 14630 | part# N/A | See Below |
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-LA | DU2Z-14474-BA | 0.64 |
| 9U5T-14474-MA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | * | * | Not Used | N/A | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | CPL31 (WH) | 22 | SWITCH - LATCH PASSENGER # AJAR | 9U5T-14474-LA | ||||
| 4 | GD238 (BK-WH) | 22 | GROUND - COWL SIDE/PILLAR A RIGHT | 9U5T-14474-LA | ||||
| 5 | CPL13 (BN-GN) | 20 | CTRL MOD. - DOOR LOCK # ALL UNLOCK | 9U5T-14474-MA | ||||
| 6 | CPL11 (GY-BN) | 20 | CTRL MOD. - DOOR LOCK # ALL LOCK | 9U5T-14474-MA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1554
Service Part Number:
9U2Z-14S411-BC
Gauge:
20
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Actuator - Door Lock - LH - Front
- Actuator - Door Lock - LH - Rear
- Actuator - Door Lock - RH - Front
- Actuator - Door Lock - RH - Rear
- Connector - Inline
- Module - Occupant Classification
- Sensor - Acceleration Pedal Position
- Sensor - Gear Neutral
- Sensor - Occupant Classification
- Sensor - Seat Track Position
- Sensor - Transmission Range
- Switch - Door Ajar / Interior Lamp
