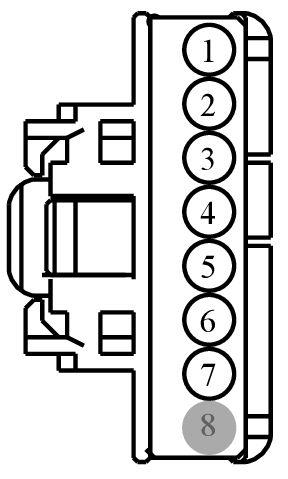

Connector End View (C541) - FRONT DOOR LOCK CONTROL SWITCH LH
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C541 | FRONT DOOR LOCK CONTROL SWITCH LH | BK | 14631 | part# N/A | See Below |
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 3F2T-14474-SA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CPL43 (VT-GY) | 22 | SWITCH - TRIM DOOR LOCK (DRIVER) # UNLOCK | 3F2T-14474-SA | ||||
| 2 | CPL42 (GY-YE) | 22 | SWITCH - TRIM DOOR LOCK (DRIVER) # LOCK | 3F2T-14474-SA | ||||
| 3 | RPL61 (BN-GN) | 22 | CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK DRIVER | 3F2T-14474-SA | ||||
| 4 | CPL77 (BU-GN) | 22 | CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK DRIVER ILLUMINATION | 3F2T-14474-SA | ||||
| 5 | CPS15 (VT-WH) | 22 | SWITCH - MEMORY DRIVER P1 | 3F2T-14474-SA | ||||
| 6 | CPS16 (YE) | 22 | SWITCH - MEMORY DRIVER P2 | 3F2T-14474-SA | ||||
| 7 | CPS17 (BU-OG) | 22 | SWITCH - MEMORY DRIVER P3 | 3F2T-14474-SA | ||||
| 8 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1219
Service Part Number:
3U2Z-14S411-DAAC
Gauge:
18
Pin material:
Silver
Cavities:
8
Vehicle Uses:
- Switch - Ambient Lighting Dimmer
- Switch - Door Lock (LH)
- Switch - Message Center
- Switch - Moon Roof/Sun Roof
- Switch - Seat Memory
