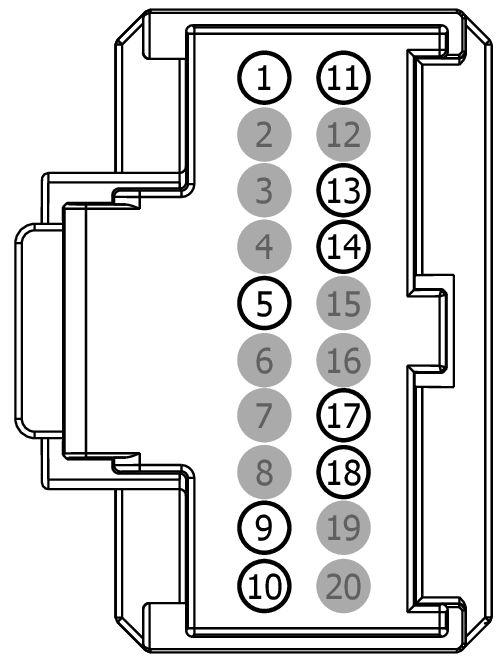

Connector End View (C535) - DRIVER DOOR WINDOW CONTROL SWITCH

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C535	DRIVER DOOR WINDOW CONTROL SWITCH	GY	14631	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
9U5T-14474-DB	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VPLA4 (WH-GN)	22	CTRL MOD. - LIN BUS # DRIVER OR LEFT HAND DOOR MODULE	9U5T-14474-DB
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	CPW14 (VT-WH)	22	SWITCH - POWER WINDOW DRIVER # PASSENGER LOCK OUT (ENABLE)	9U5T-14474-DB
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	CBP02 (GN)	22	FUSE - 2 OR CIRCUIT BREAKER	9U5T-14474-DB
10	SBP06 (BN-RD)	22	FUSE - 6 OR CIRCUIT BREAKER	9U5T-14474-DB
11	RPW03 (BU-GN)	22	CTRL MOD. - POWER WINDOW SWITCH DRIVER RETURN	9U5T-14474-DB
12	*	*	Not Used	N/A
13	CPW18 (GY-VT)	22	SWITCH - POWER WINDOW DRIVER # REAR RIGHT UP	9U5T-14474-DB
14	CPW17 (BN-GN)	22	SWITCH - POWER WINDOW DRIVER # REAR RIGHT DOWN	9U5T-14474-DB
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	CPW15 (YE)	22	SWITCH - POWER WINDOW DRIVER # REAR LEFT DOWN	9U5T-14474-DB
18	CPW16 (BU-OG)	22	SWITCH - POWER WINDOW DRIVER # REAR LEFT UP	9U5T-14474-DB
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1449

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ASA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Radio - Amplifier
