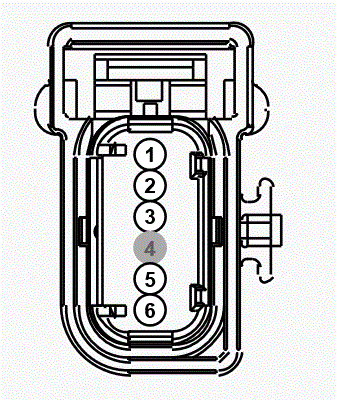

Connector End View (C500) - KEYLESS ENTRY KEYPAD
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C500 | KEYLESS ENTRY KEYPAD | BK | 14631 | part# N/A | See Below |
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| DU5T-14474-EAB | DU2Z-14474-CA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CPK29 (GY-BU) | 22 | SWITCH - KEYLESS KEYPAD LINE A | DU5T-14474-EAB | ||||
| 2 | CPK28 (WH-GN) | 22 | CTRL MOD. - SWITCH KEYLESS KEYPAD ILLUMINATION | DU5T-14474-EAB | ||||
| 3 | CPK30 (VT-GN) | 22 | SWITCH - KEYLESS KEYPAD LINE B | DU5T-14474-EAB | ||||
| 4 | * | * | Not Used | N/A | ||||
| 5 | CPK31 (YE-GN) | 22 | SWITCH - KEYLESS KEYPAD LINE C | DU5T-14474-EAB | ||||
| 6 | GD233 (BK-VT) | 22 | GROUND - COWL SIDE/PILLAR A LEFT | DU5T-14474-EAB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1329
Service Part Number:
DU2Z-14S411-EA
Gauge:
20
Pin material:
Tin
Cavities:
6
Vehicle Uses:
- Antenna - Keyless Entry
- Handle - Decklid
- Switch - Keyless Entry
- Switch - Seatbelt
