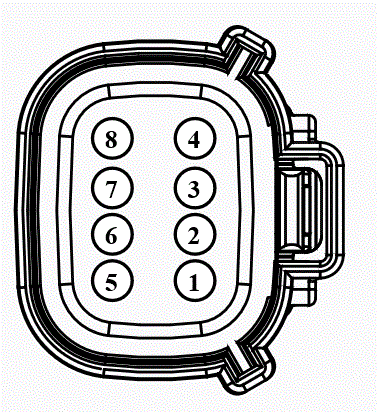

Connector End View (C498) - REAR LAMP ASSEMBLY LH

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C498	REAR LAMP ASSEMBLY LH	LT GY	13A409	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
BU5T-14474-UA	DU2Z-14474-DA	1.5

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CMF16 (YE-GN)	22	CTRL MOD. - LEFT REAR RADAR POWER	late production	BU5T-14474-UA
2	RMF16 (VT-BN)	22	CTRL MOD. - LEFT REAR RADAR GROUND	late production	BU5T-14474-UA
3	VMF12 (GN-VT)	22	CTRL MOD. - REAR RADAR # CAN BUS HIGH	late production	BU5T-14474-UA
4	VMF13 (YE-BU)	22	CTRL MOD. - REAR RADAR # CAN BUS LOW	late production	BU5T-14474-UA
5	RMF16 (VT-BN)	22	CTRL MOD. - LEFT REAR RADAR GROUND	late production	BU5T-14474-UA
6	CLF02 (GY-BN)	20	CTRL MOD. - BEAM HIGH LEFT	late production	BU5T-14474-UA
7	GD406 (BK-YE)	22	GROUND - FRAME REAR RIGHT	late production	BU5T-14474-UA
8	VDN14 (YE-VT)	22	CTRL MOD. - LIN BUS # 14	late production	BU5T-14474-UA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1524

Courtesy of FORD MOTOR COMPANY
