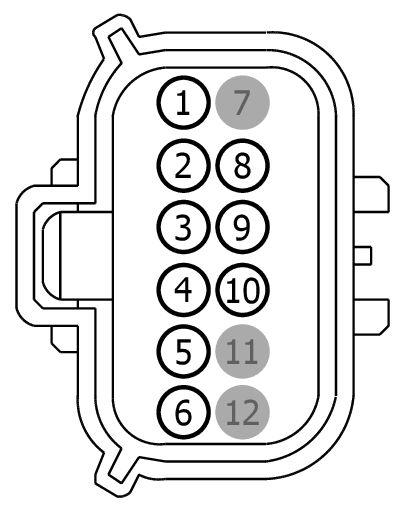

Connector End View (C439) - TRAILER TOW CONNECTOR

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C439	TRAILER TOW CONNECTOR	BK	13A576	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
BU5T-14474-UA	DU2Z-14474-DA	1.50

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBB25 (WH-OG)	20	FUSE - 25 OR CIRCUIT BREAKER	BU5T-14474-UA
2	VDB27 (VT-GN)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED 2 HIGH	BU5T-14474-UA
3	VDB28 (GY-VT)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED 2 LOW	BU5T-14474-UA
4	VAT41 (VT-BN)	20	CTRL MOD. - YAW RATE +	BU5T-14474-UA
5	RAT41 (WH-BU)	20	CTRL MOD. - YAW RATE -	BU5T-14474-UA
6	RAT08 (WH)	18	CTRL MOD. - TRAILER TOW # RETURN	7C3T-14474-DA
7	*	*	Not Used	N/A
8	DMP38 (BK)	20	SHIELD	BU5T-14474-UA
9	VMP38 (GY-VT)	22	CAMERA - TRAILER TOW (NTSC+)	BU5T-14474-UA
10	VMP39 (BU-OG)	22	CAMERA - TRAILER TOW (NTSC -)	BU5T-14474-UA
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1544

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-AMB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Connector - Inline
Lamp - Front Turn
Lamp - Headlamp - High/Low Beam
Mirror - Sideview / Heated
Module - Battery Energy Control
Module - Extended Power
Module - Gear Shift
Module - Glow Plug
Module - Transmission Ranger Control
Trailer Tow - Vehicle Side

Pigtail Kit Part Number WPT-1125

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-AMA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Connector - Inline
Mirror - Sideview
