Connector End View (C438) - INLINE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C438 | INLINE | LT GY | 14B56214B688 | See Below | ||||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| BU5T-14421-HA | EU2Z-14421-CA | 1.50 |
| 2L1T-14421-CA | EU2Z-14421-CA | 1.50 |
| 97BG-14421-BFA | EU2Z-14421-FA | 2.80 |
| BU5T-14474-UA | DU2Z-14474-DA | 1.50 |
| 7C3T-14474-EA | DU2Z-14474-DA | 1.50 |
| F8ZB-14474-AA | DU2Z-14474-FA | 2.80 |

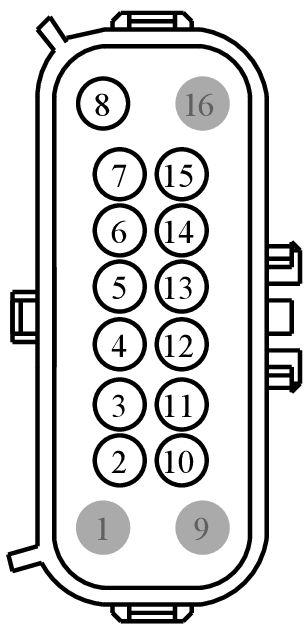

MALE
Harness
14B562
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | * | * | N/A | |||
| 2 | CPRH0 (YE-BU) | 22 | BU5T-14421-HA | |||
| 3 | GD481 (BK-GN) | 14 | 2L1T-14421-CA | |||
| 4 | CPR63 (GY-YE) | 22 | BU5T-14421-HA | |||
| 5 | CPL60 (BN-YE) | 22 | BU5T-14421-HA | |||
| 6 | VDB28 (GY-VT) | 22 | BU5T-14421-HA | |||
| 7 | VDB27 (VT-GN) | 22 | BU5T-14421-HA | |||
| 8 | SBB37 (GY-RD) | 14 | 97BG-14421-BFA | |||
| 9 | * | * | N/A | |||
| 10 | RPRH0 (BN) | 22 | BU5T-14421-HA | |||
| 11 | CPRH3 (BU-OG) | 22 | BU5T-14421-HA | |||
| 12 | CPRH2 (GY) | 22 | BU5T-14421-HA | |||
| 13 | CPRH1 (GN) | 22 | BU5T-14421-HA | |||
| 14 | VPRH1 (GN-VT) | 14 | 2L1T-14421-CA | |||
| 15 | VPRH0 (BN-BU) | 14 | 2L1T-14421-CA | |||
| 16 | * | * | N/A | |||

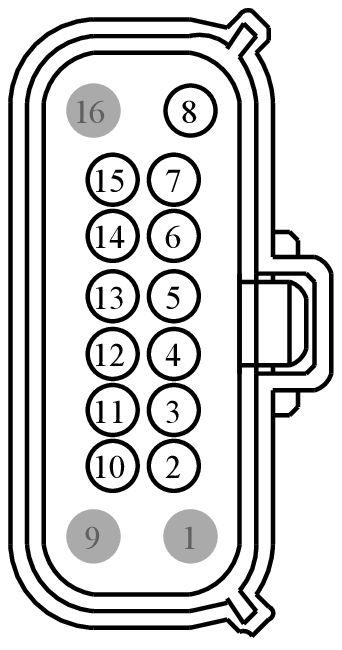

FEMALE
Harness
14B688
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | * | * | N/A | |||
| 2 | CPRH0 (YE-BU) | 22 | BU5T-14474-UA | |||
| 3 | GD481 (BK-GN) | 14 | 7C3T-14474-EA | |||
| 4 | CPR63 (GY-YE) | 22 | BU5T-14474-UA | |||
| 5 | CPL60 (BN-YE) | 20 | BU5T-14474-UA | |||
| 6 | VDB28 (GY-VT) | 22 | BU5T-14474-UA | |||
| 7 | VDB27 (VT-GN) | 22 | BU5T-14474-UA | |||
| 8 | SBB37 (GY-RD) | 10 | F8ZB-14474-AA | |||
| 9 | * | * | N/A | |||
| 10 | RPRH0 (BN) | 22 | BU5T-14474-UA | |||
| 11 | CPRH3 (BU-OG) | 22 | BU5T-14474-UA | |||
| 12 | CPRH2 (GY) | 22 | BU5T-14474-UA | |||
| 13 | CPRH1 (GN) | 22 | BU5T-14474-UA | |||
| 14 | VPRH1 (GN-VT) | 14 | 7C3T-14474-EA | |||
| 15 | VPRH0 (BN-BU) | 14 | 7C3T-14474-EA | |||
| 16 | * | * | N/A | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1092
Service Part Number:
AU2Z-14S411-AKA
Gauge:
12 16
Pin material:
Tin & Silver
Cavities:
16
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1646
Service Part Number:
LU2Z-14S411-ZA
Gauge:
14 16
Pin material:
Tin & Silver
Cavities:
16
Vehicle Uses:
- Connector - Inline
