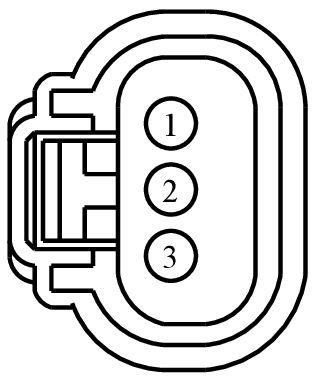

Connector End View (C435) - FUEL TANK PRESSURE (FTP) SENSOR

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C435	FUEL TANK PRESSURE (FTP) SENSOR	BK	14405	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
97BG-14474-ADA	LU2Z-14474-CA	1.50

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE922 (VT-GN)	22	TRANSDUCER - FUEL TANK PRESSURE (FTPT)	97BG-14474-ADA
2	RE230 (WH-VT)	22	CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER	97BG-14474-ADA
3	LE230 (BN-YE)	22	CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (FTPTREF)	97BG-14474-ADA

Available Pigtail Kits

Pigtail Kit Part Number WPT-990

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-ZB

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses:

Sensor - Cam Shaft Position
Sensor - Crank Shaft Position
Sensor - Fuel Tank Pressure Transducer
Sensor - Turbine Shaft Speed
Switch - Fuel Delivery Pressure
