Connector End View (C410) - INLINE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C410 | INLINE | BK | 14A411/13B66913A409 | See Below | ||||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| BU5T-14421-HA | EU2Z-14421-CA | 1.50 |
| BU5T-14474-UA | DU2Z-14474-DA | 1.50 |

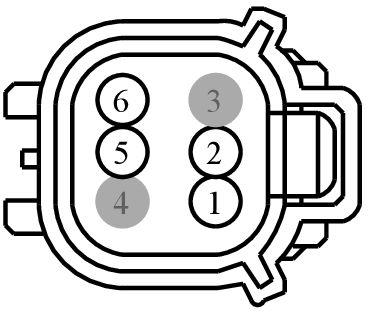

MALE
Harness
14A411/13B669
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | VLN74 (GN-BU) | 20 | BU5T-14421-HA | |||
| 2 | CLN13 (WH-BU) | 20 | BU5T-14421-HA | |||
| 3 | * | * | N/A | |||
| 4 | * | * | N/A | |||
| 5 | GD406 (BK-YE) | 20 | BU5T-14421-HA | |||
| 6 | GD406 (BK) | 20 | BU5T-14421-HA | |||
| 6 | GD406 (BK-YE) | 20 | BU5T-14421-HA | |||

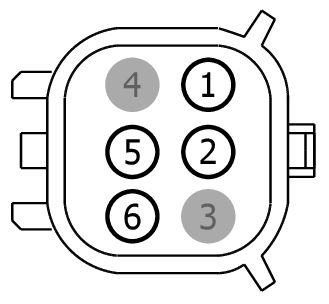

FEMALE
Harness
13A409
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | VLN74 (GN-BU) | 22 | BU5T-14474-UA | |||
| 2 | CLN13 (WH-BU) | 22 | BU5T-14474-UA | |||
| 3 | * | * | N/A | |||
| 4 | * | * | N/A | |||
| 5 | GD406 (BK-YE) | 22 | BU5T-14474-UA | |||
| 6 | GD406 (BK-YE) | 22 | BU5T-14474-UA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1426
Service Part Number:
FU2Z-14S411-TA
Gauge:
16
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Camera - Reverse Park Aid
- Lamp - Park/Turn/Stop
- Sensor - Coolant Temperature
- Sensor - O2 (HEGO/ EGO)
Pigtail Kit Part Number WPT-971
Service Part Number:
3U2Z-14S411-FEAB
Gauge:
14
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Connector - Inline
- Lamp - Headlamp - High/Low Beam
- Lamp - Park/Turn/Stop
- Motor - Engine Cooling Fan
- Motor - Running Board
