Connector End View (C405) - INLINE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C405 | INLINE | DK GY | 13A40914405 | See Below | ||||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14421-CFA | Not Available | |
| 97BG-14474-CFA | KU2Z-14474-AA | 6.30 |

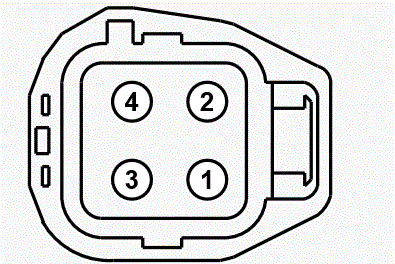

MALE
Harness
13A409
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | HYA12 (OG-YE) | 12 | 97BG-14421-CFA | |||
| 2 | HYA10 (OG-GY) | 12 | 97BG-14421-CFA | |||
| 3 | RYA09 (GY) | 12 | 97BG-14421-CFA | |||
| 4 | HYA11 (OG) | 12 | 97BG-14421-CFA | |||

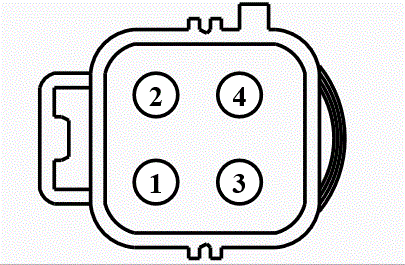

FEMALE
Harness
14405
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | HYA12 (OG-YE) | 12 | 97BG-14474-CFA | |||
| 2 | HYA10 (OG-GY) | 12 | 97BG-14474-CFA | |||
| 3 | RYA09 (GY) | 12 | 97BG-14474-CFA | |||
| 4 | HYA11 (OG) | 12 | 97BG-14474-CFA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1343
Service Part Number:
DU2Z-14S411-ABA
Gauge:
12
Pin material:
Tin
Cavities:
4
Vehicle Uses:
- Mating Connector WPT-750
- Motor - Engine Cooling Fan
