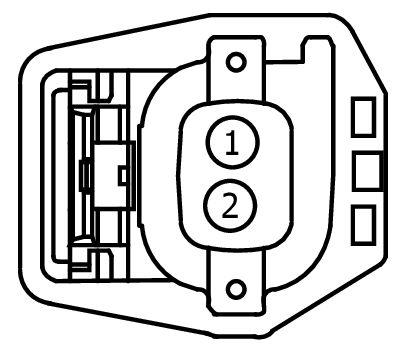

Connector End View (C372) - REAR HYDRAULIC SOLENOID VALVE RH

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C372	REAR HYDRAULIC SOLENOID VALVE RH	BK	14405	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
97BG-14474-AEA	LU2Z-14474-CA	1.50

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CCD06 (VT-GY)	18	CTRL MOD. - CDC # VALVE DAMPER REAR RIGHT +	97BG-14474-AEA
2	RCD06 (BU-BN)	18	CTRL MOD. - CDC # VALVE DAMPER REAR RIGHT -	97BG-14474-AEA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1448

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-AUA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Switch - Deck Lid / Lift Gate (ANTI-THEFT)
