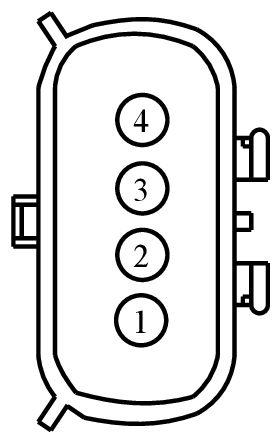

Connector End View (C1157) - FRONT INTEGRATED WHEEL END (IWE) LH

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1157	FRONT INTEGRATED WHEEL END (IWE) LH	BK	12A581	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
BU5T-14421-HA	EU2Z-14421-CA	1.50

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RCF40 (YE-GN)	22	CTRL MOD. - LEFT FRONT INTEGRATED WHEEL END (RETURN)	BU5T-14421-HA
2	CCF42 (BU-OG)	22	CTRL MOD. - LEFT FRONT INTEGRATED WHEEL END (FEEDBACK)	BU5T-14421-HA
3	CCF40 (YE-BU)	22	CTRL MOD. - LEFT FRONT INTEGRATED WHEEL END (HIGH)	BU5T-14421-HA
4	CCF14 (GN-WH)	22	CTRL MOD. - LEFT FRONT INTEGRATED WHEEL END (LOW)	BU5T-14421-HA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1432

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ABA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Lamp - Flashing LED
Lamp - Park/Turn/Stop
Speaker - Front
