Connector End View (C1147) - INLINE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C1147 | INLINE | BK | 14B48512C508 | See Below | ||||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 2L1T-14421-CA | EU2Z-14421-CA | 1.50 |
| 7C3T-14474-CA | DU2Z-14474-DA | 1.50 |

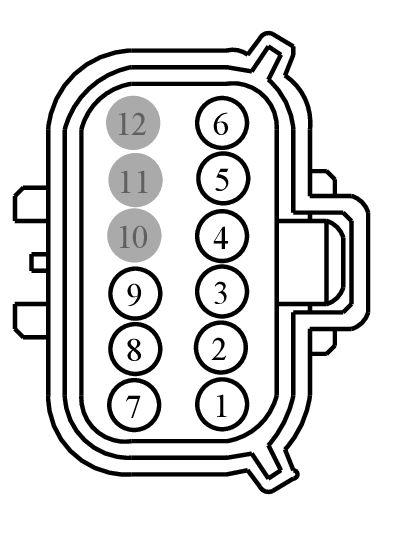

MALE
Harness
14B485
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | RE210 (BN-VT) | 16 | 2L1T-14421-CA | |||
| 2 | CE210 (GN-WH) | 16 | 2L1T-14421-CA | |||
| 3 | RE209 (WH-GN) | 16 | 2L1T-14421-CA | |||
| 4 | CE209 (BN) | 16 | 2L1T-14421-CA | |||
| 5 | RE208 (BU) | 16 | 2L1T-14421-CA | |||
| 6 | CE208 (YE-OG) | 16 | 2L1T-14421-CA | |||
| 7 | VE727 (BU-BN) | 18 | 2L1T-14421-CA | |||
| 8 | RE454 (YE-GN) | 18 | 2L1T-14421-CA | |||
| 9 | LE423 (GN-VT) | 18 | 2L1T-14421-CA | |||
| 10 | * | * | N/A | |||
| 11 | * | * | N/A | |||
| 12 | * | * | N/A | |||

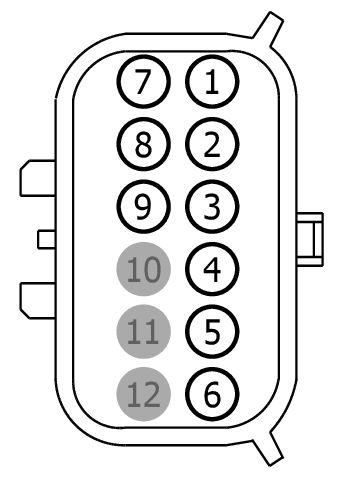

FEMALE
Harness
12C508
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | RE210 (BN-VT) | 16 | 7C3T-14474-DA | |||
| 2 | CE210 (GN-WH) | 16 | 7C3T-14474-DA | |||
| 3 | RE209 (WH-GN) | 16 | 7C3T-14474-DA | |||
| 4 | CE209 (BN) | 16 | 7C3T-14474-DA | |||
| 5 | RE208 (BU) | 16 | 7C3T-14474-DA | |||
| 6 | CE208 (YE-OG) | 16 | 7C3T-14474-DA | |||
| 7 | VE727 (OG) | 22 | 7C3T-14474-CA | |||
| 8 | RE238 (BU-BN) | 18 | 7C3T-14474-DA | |||
| 9 | LE423 (GN-VT) | 18 | 7C3T-14474-DA | |||
| 10 | * | * | N/A | |||
| 11 | * | * | N/A | |||
| 12 | * | * | N/A | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1485
Service Part Number:
HU2Z-14S411-CA
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1601
Service Part Number:
HU2Z-14S411-CB
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
- Module - Anti-Lock Brake System
- Module - Wigwag Lamps
- Trailer Tow - Vehicle Side
Pigtail Kit Part Number WPT-1544
Service Part Number:
AU2Z-14S411-AMB
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
- Lamp - Front Turn
- Lamp - Headlamp - High/Low Beam
- Mirror - Sideview / Heated
- Module - Battery Energy Control
- Module - Extended Power
- Module - Gear Shift
- Module - Glow Plug
- Module - Transmission Ranger Control
- Trailer Tow - Vehicle Side
Pigtail Kit Part Number WPT-1125
Service Part Number:
AU2Z-14S411-AMA
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
- Mirror - Sideview
