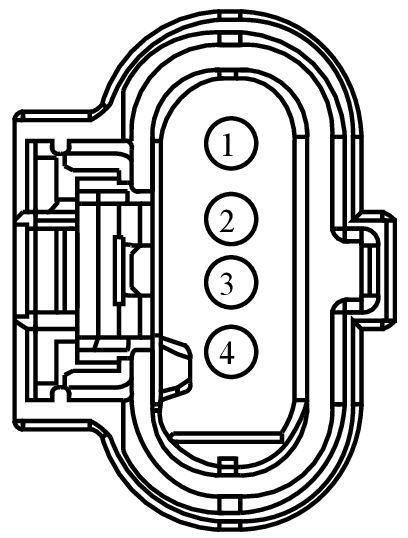

Connector End View (C1140) - MANIFOLD ABSOLUTE PRESSURE AND TEMPERATURE (MAPT) SENSOR
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1140 | MANIFOLD ABSOLUTE PRESSURE AND TEMPERATURE (MAPT) SENSOR | BK | 12C508 | part# N/A | See Below |
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| EU5T-14474-FAB | Not Available | |
| EU5T-14474-GAB | KU2Z-14474-CA | 1.20 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VE803 (BU-GN) | 22 | SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP) + | EU5T-14474-FAB | ||||
| 2 | LE329 (BU) | 18 | CTRL MOD. - POWERTRAIN # MANIFOLD PRESSURE SENSOR (MAP) + | EU5T-14474-GAB | ||||
| 3 | VE740 (VT-GY) | 22 | SENSOR - INTAKE AIR TEMPERATURE (IAT) | EU5T-14474-FAB | ||||
| 4 | RE329 (WH-BN) | 18 | CTRL MOD. - POWERTRAIN # MANIFOLD PRESSURE SENSOR (MAP) - | early production | EU5T-14474-GAB | |||
| 4 | RE804 (GY-BU) | 18 | CTRL MOD. - POWERTRAIN # MANIFOLD PRESSURE SENSOR (MAP) - | late production | EU5T-14474-GAB | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1537
Service Part Number:
JU2Z-14S411-ACA
Gauge:
18
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Module - Differential Oil Temperature
- Module - Particulate Matter Bank Sensor
- Module - Reductant Quality
- Noise Generator
- Sensor - Fuel Rail Pressure and Temperature
- Sensor - Manifold Pressure/Intake Temperature
- Sensor - Turbo Intake Pressure/Temperature
- Valve - Active Exhaust Solenoid
