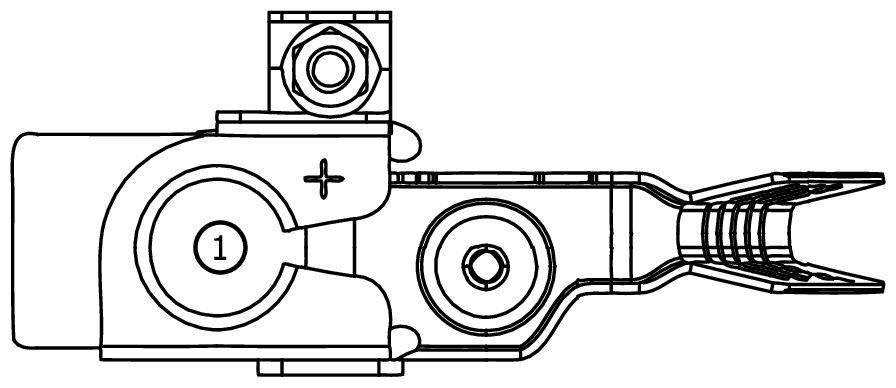

Connector End View (C1100J) - BATTERY
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1100J | BATTERY | 14B060 | part# N/A | Not Available | ||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | SDC02 (RD) | 1 | BATTERY - # PLUS | N/A | ||||
| 1 | SDC02 (RD) | 4 | BATTERY - # PLUS | N/A | ||||
