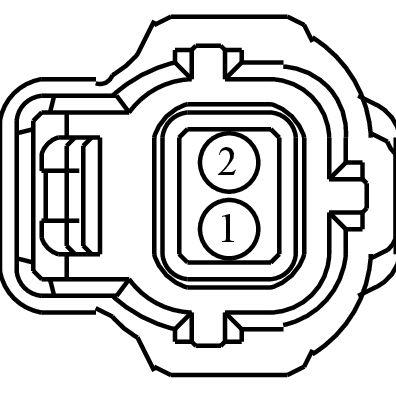

Connector End View (C1083) - EXHAUST GAS RECIRCULATION (EGR) COOLER BYPASS VALVE (EGRCBV) SOLENOID

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1083	EXHAUST GAS RECIRCULATION (EGR) COOLER BYPASS VALVE (EGRCBV) SOLENOID	BK	12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
98AG-14474-AA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBK02 (GN)	18	FUSE - 7 OR CIRCUIT BREAKER	98AG-14474-AA
2	CE457 (BN-GN)	18	CTRL MOD. - POWERTRAIN # SOLENOID EGR COOLING BYPASS VALVE	98AG-14474-AA

Available Pigtail Kits

Pigtail Kit Part Number WPT-357

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-HVA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Fuel Pump/Sending Unit
Motor - Idle Air Control
Motor - Rear Window Washer Fluid Pump
Motor - Windshield Washer Fluid Pump
Sensor - Coolant Temperature
Sensor - Washer Fluid level
