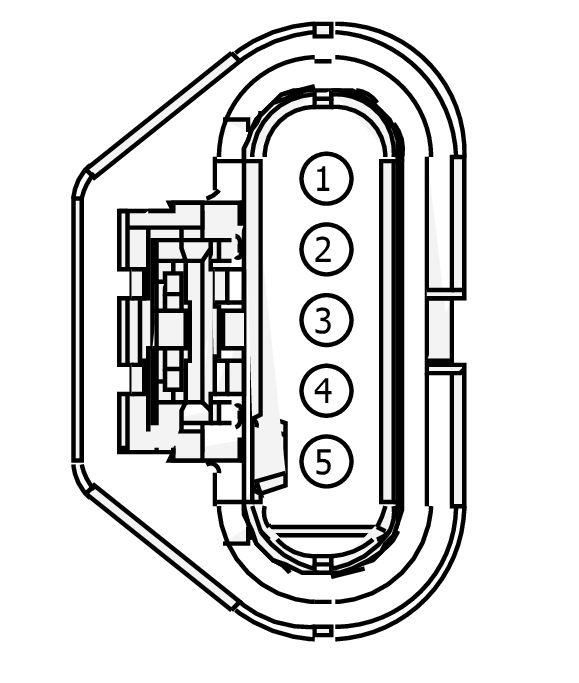

Connector End View (C1072) - ELECTRIC EXHAUST GAS RECIRCULATION (EEGR) ASSEMBLY

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1072	ELECTRIC EXHAUST GAS RECIRCULATION (EEGR) ASSEMBLY	BK	12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
EU5T-14474-GAB	KU2Z-14474-CA	1.20

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RE164 (BN-YE)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. BYPASS POSITION -	EU5T-14474-GAB
2	LE164 (BU-GN)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. BYPASS POSITION +	EU5T-14474-GAB
3	LE423 (GN-VT)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF)	EU5T-14474-GAB
4	VE850 (WH-VT)	18	SENSOR - WASTE GATE CONTROL PRESSURE (WGCP)	EU5T-14474-GAB
5	RE454 (YE-GN)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2	EU5T-14474-GAB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1504

Courtesy of FORD MOTOR COMPANY

Service Part Number:

HU2Z-14S411-LA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Actuator - Turbocharger Waste Gate
Module - NOX Sensor
Solenoid - EGR Cooler Bypass
Valve - EGR
